Product Details
Condition
New
Automatic Grade
Automatic
Model
HMPL-SSVL–TT 24″
Turntable
Inbuilt 24-inch
Output Speed
Up to 150 Products/Minute (Speed depends on label and products size)

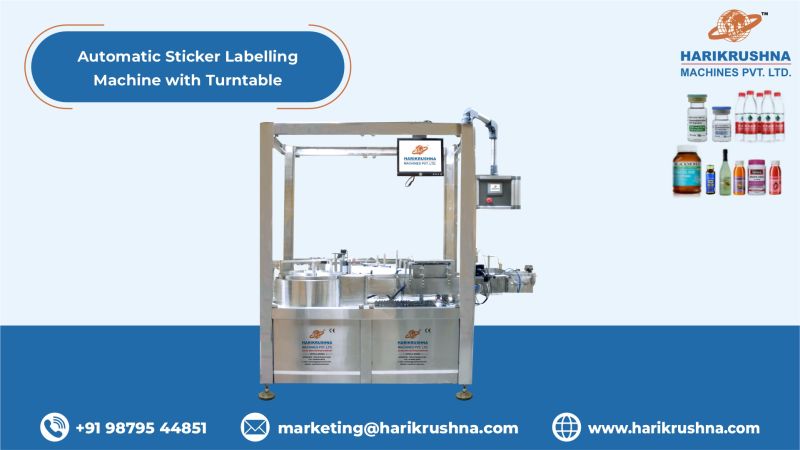

Automatic Sticker Labelling Machine with Turntable
The Automatic Sticker Labelling Machine with Turntable consists of the main structure, covered with SS cabinet and safety acrylic doors (OPTIONAL), an inbuilt 24-inch Turntable, a product transmission belt with an adjustable guide, label dispenser unit, a label wrapping unit, an electrical panel, PLC & HMI, AC drives & a batch printing unit (OPTIONAL). The complete Sticker Labelling Machine operation is PLC-based.
Key Features
- The machine is manufactured or developed accordance with GMP standards.
- The Structure is made of SS 304.
- All moving parts of the machine covered by safety guards of SS 304.
- All exposed parts of MS are powder coated / electroless nickel plated.
- Rubberized Endless Conveyor Belt.
- Specially designed Machine with inbuilt Turn Table suitable for Online and offline application.
- Machine Suitable for Round Product like vial / Bottle/ Jars/ Tin and container.
- Synchronized turn table and Conveying system equipped with AC frequency variable drive for variable speed and constant torque.
- Specially designed drive mechanism for Label Release.
- Dispensing Unit to dispense labels.
- Reel mechanism (Size: 300 mm) to hang the roll with core ID of 76 mm (3”).
- Break assembly to avoid variation during releasing of roll.
- Various label position adjustment with the help of sliding pipe assembly.
- Specially designed wrapping unit to wrap label on product.
- The Wrapping belt is made of specialized nylon sponge material for longer life.
- Most reliable and proven components such as Festo/SMC/Janatics make pneumatic and electrical/electronic such as Panasonic/Bonfiglioli/Motovario/Rotomotive make AC motor, Delta make AC Drive, PLC & HMI (Keypad), MCB & relay “CE” make.
Feature of PLC System with HMI
- No Product No Labelling.
- Fiber Optic based Product sensor to sense the product (Sensor Make: LEUZE/BANNER/SICK).
- Fiber Optic based Label Gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SICK).
- The unit is made compact design & user-friendly operating HMI.
- Over Current / Temperature Protection.
- Special HMI function like Product Delay & Pre-dispensing Length for easy machine setting.
- Label dispensing speed can be set digitally using HMI.
- System Refresh: This function is used to feed the label size into the Controller. Whenever you change to a new label type or size, press the REF key. Three labels are dispensed to get the exact label size.
- Motor unlock facility for changing the label roll.
- Total counter facility is available with password-protected reset button.
- PPM (Product per machine) facility is available.
- HMI with keypad for operating.
- Capacity to control AC drive speed from HMI.
- Multiple program facility.
- Label Break/Roll End/Missing Label (02 Nos.) – Machine Stop. When there are two consecutive missing labels or a broken label role, this error occurs. The HMI screen shows it as “Label Break/Roll End/Missing Label”.
- Two nos. continuous missing label in the label role automatic machine stop.
- The Panel unit is made in a compact design & easy serviceable/Removable.
Technical Data
| Bottle size (Ø) | 15 mm Ø to 90 mm Ø |
| Bottle Range | Round Products |
| Output speed | 120 to 150 Products/Minute (Speed depends on label and products size) |
| Label size | Up to 95 mm H |
| Working Height | 850 mm ± 50 mm Adjustable |
| Power Supply | Single Phase / 230V AC / 50 Hz |
| Air Supply | 4 to 6 kg/cm² (If use Contact type Batch Printer) |
| Net Weight | 350 Kg Approx. |
| Dimensions | 1525 mm (L) x 950 mm (W) x 1800 mm (H) Approx. |
