Product Details
Condition
New
Automatic Grade
Automatic
Model
HMPL–TSL
Output Speed
Up to 120 Products/Minute (Speed depends on label and products size)

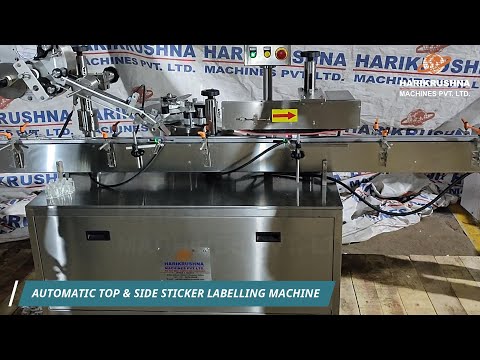

Automatic Top and Side Sticker Labelling Machine
The Automatic Top and Side Sticker Labelling Machine consists of a main structure, product transmission belt with guide adjustment, 2 nos. of label dispensing unit, label pasting by wrapping belt and nylon brush & sponge roller, motors, sensors, electrical panel, PLC & HMI, AC drives & a batch printing unit (OPTIONAL).
Key Features
- The machine is manufactured or developed accordance with GMP standards.
- Structure made of SS 304
- All moving parts of the machine covered by safety guards of SS
- All expose parts of MS are powder coated / electro less nickel plated.
- Rubberized Endless Conveyor Belt
- Conveying system to convey the product with easy adjustable side guide
- Conveying systemequipped with imported AC frequency variable drive for variable speed with constant torque
- Specially designed drive mechanism for Label Release
- Dispensing Unit to dispense labels
- Reel mechanism (Size: 305 mm) to hang the roll with core ID of 76 mm (3″)
- Break assembly to avoid variation during releasing of roll
- Various label position adjustment with the help of sliding pipe assembly
- Specially designed wrapping unit to wrap label on product.
- The Wrapping belt is made of specialized nylon sponge material for longer life.
- Label affix with nylon brush or sponge roller
- Most reliable and proven components such as Festo/SMC make pneumatic and electrical/electronic such as Panasonic/Bonfiglioli/Motovario make AC motor, Delta make AC Drives, PLC & HMI (Feather touch Keyboard), MCB & relay “CE” make
Feature of PLC System with HMI
- No Product No Labelling.
- Fiber Optic based Product sensor to sense the product (Sensor Make: LEUZE/BANNER/SICK).
- Fiber Optic based Label Gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SICK).
- The unit is made compact design & user friendly operating HMI.
- Over Current / Temperature Protection.
- Special HMI function like Product Delay & Pre dispensing Length For makes easy machine setting.
- Label dispensing speed can set digital by using HMI.
- System Refresh: This function is used to feed the label size into the Controller. Whenever you change to a new label type, or size press REF key. Three labels are dispensed to get the exact label size.
- Motor unlock facility for changing the label roll.
- Total counter facility is available with password protected reset button.
- PPM (Product per machine) facility is available.
- HMI with keypad for operating.
- Capacity to speed control AC drive from HMI.
- Multiple program facility.
- Label Break/Roll End/Missing Label (02 Nos.) – Machine Stop. When there are two consecutive missing labels or a broken label role this error occurs. The HMI screen shows it as “Label Break/Roll End/Missing Label”.
- Two nos. continuous missing label in the label role automatic machine stop.
- The Panel unit is made in compact design & easy serviceable/Removable.
Technical Data
| roduct Samples | Lids & Round Bottle |
| Output speed | Up to 120 Products/Minute (Speed depends on label and products size) |
| Label Size | As per Client Requirements |
| Working Height | 850 mm ± 50 mm Adjustable |
| Power Supply | Single Phase / 230V AC / 50Hz |
| Air Supply | 2 to 4 Kg/Cm2 (In case of Contact Printer) |
| Net Weight | 375 Kg Approx. |
| Dimensions | 2745 mm (L) x 490 mm (W) x 850 + 50 mm (H) |
