| Business Type | Manufacturer, Exporter |
| Country of Origin | India |
| Brand Name | Harikrushna Machines |
| Output Speed | 50 to 300 PPM |
| Click to view more | |
Product Details

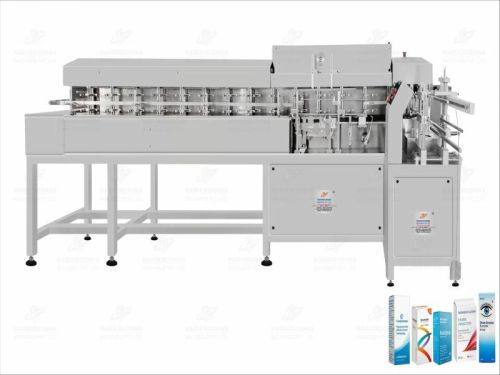

The Semi-Automatic Linear Cartoning Machine is a compact unit made of MS angle structure encompassed with SS covering with height adjustment legs, which are provided to adjust the machine height and highly efficient machine with an elegant look. This multifunctional featured machine meets the GMP requirements of carton opening and closing. The machine operates on the linear principle.
Key Features
- The machine is manufactured or developed per GMP standards.
- The structure is made of MS cladding with SS 304.
- Rigid vibration-free construction for trouble-free performance.
- SS Elegantly matt finished body.
- Clutch-operated machine to avoid damage to the machine.
- Vacuum gauge.
- Moving pockets for holding cartons.
- High-efficient vacuum pump for smooth and easy opening of cartons.
- Manual loading and automatic unloading of cartons.
- Easy operating system.
- Use the most reliable and proven components such as pneumatic and electrical/electronic AC motor, AC Drive, Sensors, MCB & relay etc.
Operations
The cartons loaded in the carton loading channel of the cartoning machine are picked up with a vacuum cup transferred to rotating pockets which moves into linear motion over the bottom closing unit which closes the carton bottom. After that operator needs to fed the product and leaflet into cartons manually. The filled cartons are then moved further in linear motion in pockets under the top closing unit which closes the top. Finally pocket releases the cartons on the conveyor.
Technical Data
| Carton Width | 15 mm to 80 mm |
| Carton Height | 40 mm to 200 mm |
| Carton Type | Tuck-in type |
| Carton Size (L x W x H) | As per Samples |
| Leaflet Size (Folded) (L x W) | As per Samples |
| Output Speed | 80 to 100 Cartons/Minute | 60 to 80 Cartons/Minute | (Depends upon product, carton shape & size & operator efficiency) |
| Required Operators | Six |
| Working Height | 875 ± 50 mm |
| Power Consumption Main Motor |
2 HP / Three Phase / 415 V AC / 50 Hz |
| Power Consumption Vacuum Pump |
1 HP / Three Phase / 415 V AC / 50 Hz |
| Net Weight Approx. | 900 Kg |
| Dimensions Approx. | 3500 mm L × 1250 mm W × 1200 mm H |
