Filling Machines

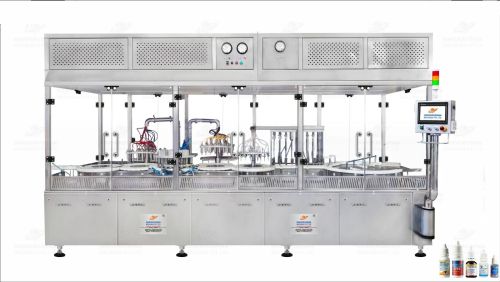

Automatic 3-Piece Eye/Ear Drop Filling, Plugging and Capping Machine

Harikrushna Machines is the Leading Manufacturer and Exporter Of 3 Piece Eye Drop Liquid Filling with Inner plug fitting Screw Capping or Screw cap sealing Machine unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body, consists of SS Slat Conveyor, Reciprocating Nozzle with self-centering devices & SS Syringe. The main drive of this eye drop filling and capping machine and conveyor drive consists of an A.C. Motor with a synchronized variable A.C. Frequency Drive.

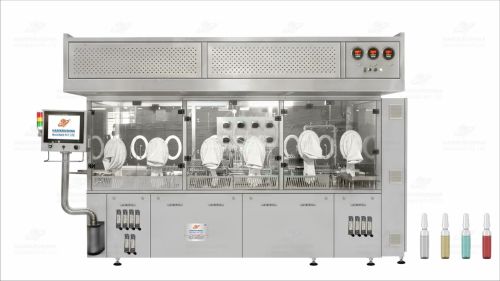

Automatic Ampoule Filling & Sealing Machine with Laminar Air Flow (LAF) System

Automatic Ampoule Filling & Sealing Machine with Laminar Air Flow (LAF) System for filling and sealing glass ampoules for pharmaceutical, veterinary, and biotech industries. Our Multi-axis servo-driven ampoule filling and sealing machine has a servo system driving feed worm, infeed starwheels, ampoule travelling rack, syringes, nozzles diving system, and ampoule cutting system. The ampoule-filling mechanism is executed by imported Rotary Syringes.

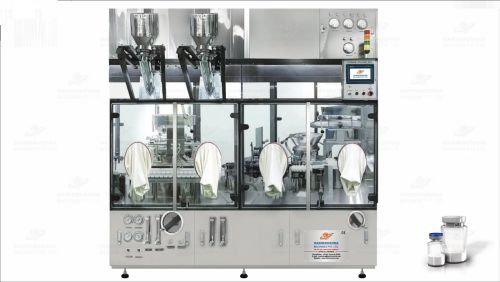

Automatic Injectable Dry Powder Filling Machine

The Automatic High-Speed Injectable Dry Powder Filling Machine is a completely mechanical driven machine with self picking roller-based rubber stoppering system. This machine has a very sturdy design and can withstand long working hours. The filling is done with the help of a vacuum and air pressure-based powder wheel with a manual fill weight setting.We have developed various aseptic powder filling and rubber stoppering machines from 1st generation monolithic mechanical machines to our latest advanced 4th generation servo-driven Centralized Piston Adjustment powder filling machine designed to fill micro dose sterile powder into a glass vial and close the same with a rubber stopper.

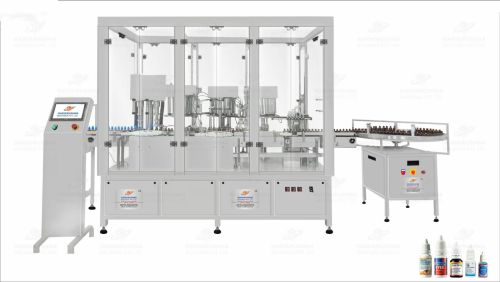

Automatic Monoblock Liquid Filling, Inner Plugging and Screw Capping Machine

Monoblock Filling Machine is the most demandable system for pharmaceutical manufacturing businesses. Its innovative technology combines the three essential functions into an integrated unit, paving the way for seamless packaging.Harikrushna Machines Pvt. Ltd. offer a cutting-edge machine to streamline your liquid filling, inner plugging, and capping processes with unmatched efficiency and fulfil the speed and precision requirements at a budget price!

Monoblock Filling Machine Manufacturer & Exporter

Harikrushna Machines Pvt. Ltd. is an ISO 9001:2015 and CE-certified manufacturer and Exporter in Ahmedabad, Gujarat, India.

Why Choose Harikrushna Machines Pvt. Ltd?

• OEM More than 25 Years
• More than 12500 Machine Installations in 60 Countries
• Team of Talented Professionals & Engineers
• Prompt & the Best Pre & Post Sales Services
• We are a Trusted Partner serving start-up businesses, Small, Medium and Big Businesses

Perfect Choice for Packaging Liquid Bottles, Eye and Ear Drop Bottles/ Vials and Nasal SpraysMonoblock Fillers are advanced solutions suitable for pharmaceutical products like eye and ear drop bottles, liquid bottles, Nasal Spray Bottles, etc.Contact Us for Automatic Mono Block Liquid Filling, Inner Plugging & Screw Capping Machine Prices and Features.

Semi-Automatic Timer Filling Machine

The Semi-Automatic Timer Filling Machine consists of the main structure of SS, product holders, 100 liters tank with a stirrer, level controller, filling pump, filling nozzle, auto & manual mode, pedal switch & AC drive.



Key Features

•     The Machine is manufactured or developed accordance with GMP standards.
•     The whole structure is made of SS 304 matt finish.
•     The contact parts are made of SS 316 such as pump / nozzle / tank & valve.
•     Rigid vibration-free construction for trouble-free performance.
•     Use of food-grade PVC braided for the flow of liquid.
•     Each filling head can work independently.
•     Unique Bottle & Nozzle holding device.
•     The storage tank with stirrer, level controller, auto inlet valve, overflow connection.
•     The machine is supplied with easy-to-clean inbuilt storage tank.
•     The drain valve below the filling tank for flushing purpose.
•     Drain tray around the machine platform.
•     Filling pump which is useful to suck the filling material from storage tank to nozzle end very quickly. Moreover, this facility is useful to clean filling line as well as filling pump. The same function for individual pumps.
•     Easy to adjust for different filling volume.
•     Machine has electronic components such as AC Drive, speed port switch, timer in place of mechanical parts such as syringe, Teflon seal rod etc.
•     Digitally controlled settings.
•     Three-phase power requirements.
•     Very high fill accuracy of ± 1 % with water.
•     No change parts required for different filling volumes / bottles.
•     Flow of liquid can be controlled by VFD.
•     User-friendly and high scalability.
•     NO BOTTLE NO FILLING.

Semi-Automatic Peristaltic Filling Machine - Tabletop

The Semi-Automatic Peristaltic Filling Machine consists of the main structure of SS, filling pump, bottle & nozzle holding device, filling nozzle, foot switch, feather touch HMI control, motor & electrical panel. The Peristaltic Pump is a two-channel pump for use in the laboratory and extensively in industrial applications where an accurate flow rate is essential. Pumping action is done by a roller cage driven by a stepper motor. The motor and internal are almost independent of temperature. This pump has a load and line compensation circuit. The rollers are made up of carbon-filled nylon for trouble-free operation. The electronic circuit provides a constant flow rate even if there is line voltage or load variation.

Semi-Automatic Piston Filling Machine - Tabletop

The Semi-Automatic Two Head Filling Machine consists of a main structure, product holder, hopper for filling material, piston, filling nozzle, foot-operated switch, electrical panel, motor & mains ON/OFF.



Key Features

•     The Piston Filling Machine is manufactured or developed accordance with GMP standards.
•     The structure is made of SS 304 matt finish.
•     The contact parts are made of SS 316.
•     Rigid vibration-free construction for trouble-free performance.
•     The machine is run with air where electric supply is not required.
•     The unit is controlled by compressed air.
•     No change parts required for different filling volumes / products.
•     Specially designed pneumatic cylinder operated nozzle with plunger to avoid dripping.
•     The machine can be used for various sizes of products.
•     Emergency on / off switch to prevent accidents.
•     User-friendly and high scalability.
•     Easy screw adjustment & easy to clean.
•     All pneumatic connections FESTO/SMC/Janatics make.
•     Dual – Auto & Manual mode operation.
•     20 Kg single wall made of SS 316 hopper.

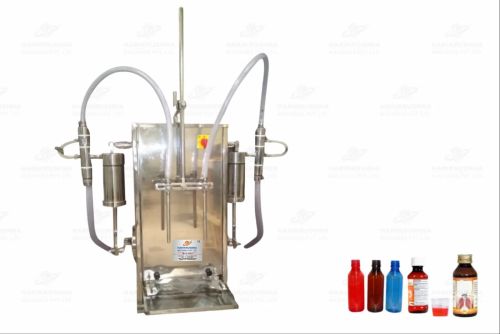

Semi-Automatic Volumetric Liquid Filling Machine - Tabletop

The Semi-Automatic Volumetric Liquid Filling Machine – Table Top consists of the main structure, product holding mechanism, nozzles & syringes, electrical panel, motor & mains ON/OFF.



Key Features

•     The Machine is manufactured or developed accordance with GMP standards.
•     The structure is made of MS cladded with SS 304.
•     Rigid vibration-free construction for trouble-free performance.
•     SS 304 elegantly matt finished bodies.
•     All contact parts are made from SS 316.
•     Reciprocating filling nozzle with self-centering device to avoid foaming.
•     The pharma/food grade PVC braded tubes are used for the filling purpose.
•     Minimum changeover time, from one size to another bottle or fill size.
•     SS measurement scale for filling volume adjustment.
•     Filling accuracy ± 1% in single dose.
•     Flow of liquid can be changed.
•     Unique tabletop machine.
