Product Details

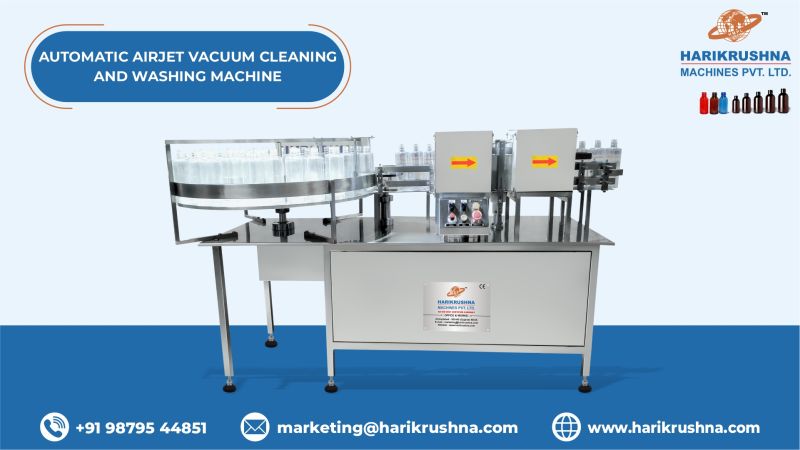

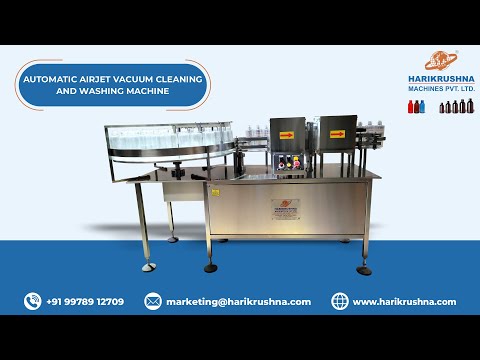

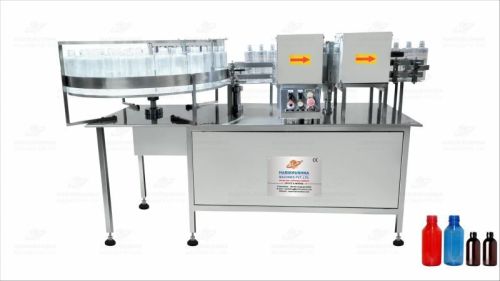

The Automatic Air jet Vacuum Cleaning System consists of a main structure, product loading conveyor, safety cover (OPTIONAL), product in-feed screw/star plate, inverter screw, pneumatic component, washing nozzles, electrical panel, AC drive & motor.
Key Features :
- The unit is made compact & versatile as per GMP norms.
- The structure is made of MS and cladded with SS304.
- Rigid vibration-free construction for trouble-free performance.
- Contact parts are made of SS 316.
- Two nos. of nozzle for cleaning of bottles.
- Made of 10mm thick aluminum plate with SS 304 cladding.
- Bearing support for the rotating disc for long life.
- Change parts required for different bottles i.e.. in-feed star plate & in-feed screw.
- The machine can be utilized for various sizes (Diameter) of products.
- User-friendly and very less maintenance required.
- Automatic in-feed and out-feed of bottles.
- Most reliable and proven components such as Festo/SMC make pneumatics and electrical/electronic such as Bonfiglioli/Motovario make AC motor, MCB & relay “CE” make.
MODEL
| # | Model | Output Speed |
| 1 | HMPL-AVC-40 | 30 to 40 BPM |
| 2 | HMPL-AVC-60 | 40 to 60 BPM |
| 3 | HMPL-AVC-80 | 60 to 80 BPM |
| 4 | HMPL-AVC-100 | 80 to 100 BPM |
| 5 | HMPL-AVC-120 | 100 to 120 BPM |
Key Features
- The unit is made compact & versatile as per GMP norms.
- The structure is made of MS and cladded with SS 304.
- Rigid vibration-free construction for trouble-free performance.
- Contact parts are made of SS 316.
- Two nos. of nozzle for cleaning of bottles.
- Product loading belt conveyor.
- No external lubrication is required.
- Pressure regulator with pressure switch optionally provided.
- Adjustable height of the Cleaning unit based on the height of the bottles/containers.
- Made of 10mm thick aluminum plate with SS 304 cladding.
- Bearing support for the rotating disc for long life.
- Change parts required for different bottles i.e.. in-feed star plate & in-feed screw.
- The machine can be utilized for various sizes (Diameter) of products.
- User-friendly and very less maintenance required.
- The machine is given with an inbuilt Vacuum Blower to suck loosened particles from the inner surface of the container.
- Automatic in-feed and out-feed of bottles.
- Most reliable and proven components such as Festo/SMC/Genetic make pneumatic and electrical/electronic such as Bonfiglioli/Motovario/Rotomotive/Gennext make AC motor, MCB & relay “CE” certified.
Operations
The bottles are loaded manually in a vertical position on the conveyor from where they enter into the in-feed screw they are inverted on the inverter screw and taken for the cleaning system. As soon as the bottles are passed over the ionized air nozzles, this ionized air spray blows to clean and neutralize the static charge. This affected the particles present in the bottles. These particles are sucked away by applying a simultaneous vacuum to the blower.
Technical Data
| Bottle Size (Ø) | 25mm Ø to 90mm Ø |
| Bottle Volume | 50 ml to 250 ml Round PET Bottles |
| Cleaning Type | Intermittent Linear Type |
| Working Height | 875 ± 50 mm |
| Power Supply | Three Phase/440V AC/ 50Hz |
| Air Consumption | 5 CFM 4 to 6 Kg/Cm2 (Customer’s Scope) |
| Net Weight | 400 Kg Approx. |
| Change Parts | In-feed Screw/Star Plate & Inverter Screw |
| Type of Cleaning | Ø Filter: Air Filter: 5 microns with auto drain Mist Separator: 0.3 microns with auto drain Ø Ionized Air: High flow rate ionized air nozzle |
