Washing/ Cleaning Machines

Automatic Air Jet Vacuum Cleaning Machine

The Automatic Air jet Vacuum Cleaning System consists of a main structure, product loading conveyor, safety cover (OPTIONAL), product in-feed screw/star plate, inverter screw, pneumatic component, washing nozzles, electrical panel, AC drive & motor.

Key Features :

•     The unit is made compact & versatile as per GMP norms.
•     The structure is made of MS and cladded with SS304.
•     Rigid vibration-free construction for trouble-free performance.
•     Contact parts are made of SS 316.
•     Two nos. of nozzle for cleaning of bottles.
•     Made of 10mm thick aluminum plate with SS 304 cladding.
•     Bearing support for the rotating disc for long life.
•     Change parts required for different bottles i.e.. in-feed star plate & in-feed screw.
•     The machine can be utilized for various sizes (Diameter) of products.
•     User-friendly and very less maintenance required.
•     Automatic in-feed and out-feed of bottles.
•     Most reliable and proven components such as Festo/SMC make pneumatics and electrical/electronic such as Bonfiglioli/Motovario make AC motor, MCB & relay “CE” make.

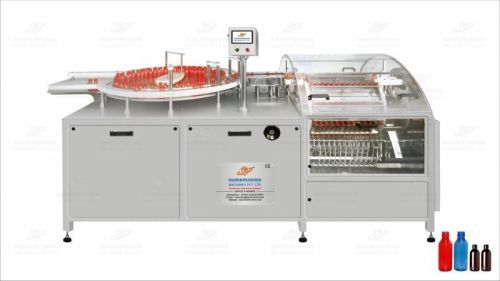

Automatic Combi Air Jet Vacuum Cleaning & Water Washing Machine

Automatic Combi Air Jet Cleaning and Water Washing Machine (For Rinsing of 30 ml to 200 ml Round Glass & PET Bottles) HMPL High-Speed Linear Bottle Washing Machine is most ideal for Round/Flat Bottles and finds wide application in Pharma, Food & Beverages Industries.The Automatic Loading Arrangement Facilities loading of bottles onto the turntable through a feed conveyor and bottles are pushed from the pushing device. This saves manpower as bottles are fed into pockets automatically. The automatic unloading mechanism consists of unloading the bottle to continue to the turntable (OPTIONAL).



Key Features

•     The structure is made of MS cladded with SS 304 including the basic frame.
•     Rigid vibration-free construction for trouble-free performance.
•     High-pressure spray nozzles ensure a perfect wash of bottles.
•     Interchangeable wash sequences.
•     The machine suitable for handling washes of round and flat glass bottle (With help of change parts).
•     All parts coming in contact with washing zones / jet are made from SS 316 L materials.
•     Pumps and tanks are mounted on a portable stand for easy maintenance and cleaning purpose.
•     Water recycling arrangement is possible as per customer’s need.
•     Higher capacity centrifugal pump to wash bigger containers.
•     Third Tank & pump can be fitted (optional).
•     Most reliable and proven components such as Festo/SMC/Janatics make pneumatic and electrical/electronic such as Bonfiglioli/Motovario/Rotomotive make AC motor, Delta make AC drive, MCB & relay “CE” make.
•  The machine is manufactured or developed accordance with GMP standards.

Vial Washing Machine | Internal & External Vial Washer

The Vial Washing Machine washes vials with minimal contact between machine parts and the vial. Our vial washing equipment effectively washes various sizes of vials with the assistance of changing parts.

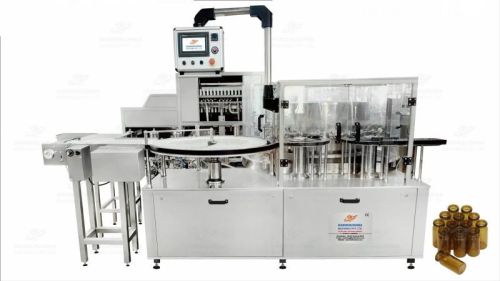

Automatic Rotary Vial Washing System: A Manufacturer and Exporter in India

Harikrushna Machines Pvt. Ltd. (HMPL Sterile) is an ISO 9001:2015 and CE-certified

Automatic Linear Air Jet Vacuum Cleaning Machine

The Automatic Linear Air Jet Vacuum Cleaning Machine consists of the main structure, product in-feed screw, in-feed star plate, pneumatic component, washing nozzles, electrical panel, AC drive & motor.

Linear Vial Washing Machine | Automatic Linear Vial Washing Machines

The Automatic Linear Vial Washing Machine consists of the main structure, covered with SS cabinet safety acrylic doors (OPTIONAL), in-feed turntable, washing nozzles, out-feed conveyor, pumps with the tank, filter housing & cartridge, pneumatic components, motors & gearbox, and electrical panel, AC Drive, PLC & HMI (OPTIONAL).

Vial Washing System: Wash 2 ml to 30 ml Round Glass Vials with up to 200 Vials per Minute Speed

Linear Vial Washing System wash 2 ml to 30 ml round glass vials with up to 200 vials per minute output speed. HMPL Sterile's Automatic Linear Vial Washing Equipment meets demanding production requirements. Its user-friendly interface allows for easy operation and monitoring, enhancing overall productivity.The advanced technology incorporated into this machine guarantees thorough cleaning of each vial, ensuring compliance with stringent quality standards. Its linear design optimizes space utilization while maintaining a consistent washing performance.HMPL Sterile offers a cutting-edge solution for vial washing needs, combining speed, accuracy, and reliability to streamline production processes effectively.

Vial Washer | Vial Washers Manufacturer & Exporter in India

A vial washer is a specialized machine that cleans vials and small cylindrical containers made from glass. Vial washers play a crucial role in ensuring the sterility and cleanliness of vials.

Rotary Vial Washers:



Automatic Rotary Bottle Washing Machine - Glass and PP Bottles

The Automatic Rotary Bottle Washing Machine for Glass and PP Bottles consists of the main structure, rotary platform, bottle holder/cups, flow regulators, pressure meter, solenoid valve, Geneva mechanism, 2 nos. of SS tanks with pump, nozzle, electrical panel & AC motor.



Key features

• The Rotary Bottle Washing Machine is made compact & versatile as per GMP norms.
• The structure is made of MS and cladded with SS304.
• Rigid vibration-free construction for trouble-free performance.
• The contact parts such as Rotary washing nozzle, Rotary washing pump impeller, tanks, cup/bottle holder plate are made of Stainless Steel 304.
• Easy to clean the base of the machine by removing the top cover.
• The tanks capacity is 75 liters each.
• Specially designed SS 304 Impeller-based AC motor for pumps.
• Pumps and tanks are mounted on a portable stand for easy maintenance and cleaning purpose.
• Higher capacity of centrifugal pumps to wash bigger bottles (500ml & 1000 ml).
• Stationary nozzles to eliminate contamination of water cycles.
• Specially designed Geneva Mechanism.
• Four inner wash (Included one air wash, two inner wash with recycled tray) & one outer wash.
• Easy loading/unloading & operation.
• Individual solenoid valve use for each wash – which eliminates carbon plate and other accessories. This is to avoid leakages and minimize the maintenance ratio.
• Individual flow regulating valves to control the flow of water.
• Bottle guide system especially for lightweight bottle.
• Separate panel control to avoid any short circuit due to spraying of water.
• SS glycerin-filled pressure meter



Automatic High-Speed Rotary Ampoule Washing Machine

The Automatic High-Speed Rotary Ampoule Washing Machine is specially designed to wash Ampoule with Minimum Contact Machine Parts by HMPL Sterile. The Machine is suitable for Wash 1 ml to 20 ml Ampoules with the help of Change Parts. Automatic Rotary Ampoule Washing System is widely used in the Pharmaceutical, Veterinary & Biotech Industries. The system With a Specially Designed Gripper System Holds the Ampoule from the Neck and Invert till the Washing Operation is Completed Again After Washing Release the Ampoule on the out-feed Feed Screw System in Vertical Position Ensures Positive Wash Ampoules.

Semi-Automatic Air Jet Vacuum Cleaning Machine

The Semi-Automatic Air Jet Vacuum Cleaning System consists of main structure, Ionizer, Air Nozzle, foot operated switch and Vacuum Suction Blower by HMPL.



Key Features

•     The machine is manufactured or developed accordance with GMP standards.
•     The structure is made of SS 304.
•     Rigid vibration free construction for trouble-free performance.
•     Contact parts are made of SS 316.
•     Two nos. of nozzle for cleaning of bottles.
•     Bottles loaded manually on the bottle holder.
•     Pressure regulator with pressure switch optionally provided.
•     Adjustable height of the cleaning unit based on the height of the bottles/containers.
•     User-friendly and very less maintenance required.
•     Machine is given with very high velocity of air, effective cleaning of containers.
•     Machine with foot-operated switch.
•     Machine is given with inbuilt vacuum blower to suck loosened particles from the inner surface of the container.
•     Most reliable and proven components such as Festo/SMC/Janatics make pneumatic and electrical/electronic such as Bonfiglioli/Motovario/Rotomotive make AC motor, MCB & relay “CE” make.

Semi-Automatic Bottle Washing Machine

Harikrushna Machines Pvt. Ltd. (HMPL) introduces Model HMPL-SBW, a semi-automatic bottle washing machine specifically designed for 500 ml glass round bottles. Built with a durable SS 304 structure, the machine is available in two tank sizes and is engineered for space efficiency. It washes two bottles at a time, with the operator manually placing them into the brushes for cleaning using recycled or tap water. Afterward, the operator moves the bottles to the rinsing unit for a final wash with DM water or hot water. Each tank holds up to 20 liters of water. The machine delivers an output of 10 to 15 bottles per minute, depending on the operator's skill with manual loading and unloading.

Unscrambler with Air Jet Cleaning Machine

Harikrushna Machines Pvt. Ltd. (HMPL Sterile) proudly introduces its state-of-the-art Unscrambler with Air Jet Cleaning Machine, meticulously designed for cleaning eye-ear drop bottles, nasal sprays, and PP bottles. This innovative machine streamlines the packaging process by automatically unscrambling and cleaning bottles using high-pressure air jets. The machine ensures that each bottle is free from contaminants before entering the filling and sealing stages. The machine's versatile design caters to various packaging lines, ensuring sterility and precision for eye-ear drops and nasal sprays.HMPL Sterile engineered the Unscrambler with Air Jet Cleaning Machine to deliver high output while maintaining exceptional quality standards. Its user-friendly interface allows for seamless integration into existing production lines, offering flexibility and efficiency for manufacturers.  This machine guarantees optimal performance, reduced downtime, and enhanced product safety, making it an indispensable asset for any production facility.

Unscrambler with Air Jet Cleaning Machine Manufacturer & Exporter in India

Key Benefits:

• Enhanced Hygiene and Safety: The machine uses high-pressure air jets to clean bottles, effectively removing contaminants before they enter the filling and sealing process.
• Increased Efficiency: The machine's ability to automatically unscramble and clean bottles significantly reduces manual labour and the risk of human error. This results in a smoother, faster production line, ultimately leading to higher output and reduced operational costs.
• Versatility: The machine accommodates various packaging lines by design. The machine can be easily integrated into different production environments, whether for pharmaceutical products or PP milk bottles. This flexibility makes it a valuable addition to any manufacturing facility.
• Reduced Downtime: The machine's robust construction and advanced technology minimize the chances of breakdowns, ensuring continuous operation. It leads to less downtime and increased overall productivity.
• User-Friendly Operation: With an intuitive interface and easy-to-use controls, the machine allows operators to quickly adapt and manage the production process with minimal training, further enhancing operational efficiency.
