Product Details
Brand Name
Harikrushna Machines
Material
Stainless Steel
Output Speed
Up to 400 ampoules per minute
Specialities
Rust Proof, High Performance, Easy To Operate
Model
HMPL-AFS

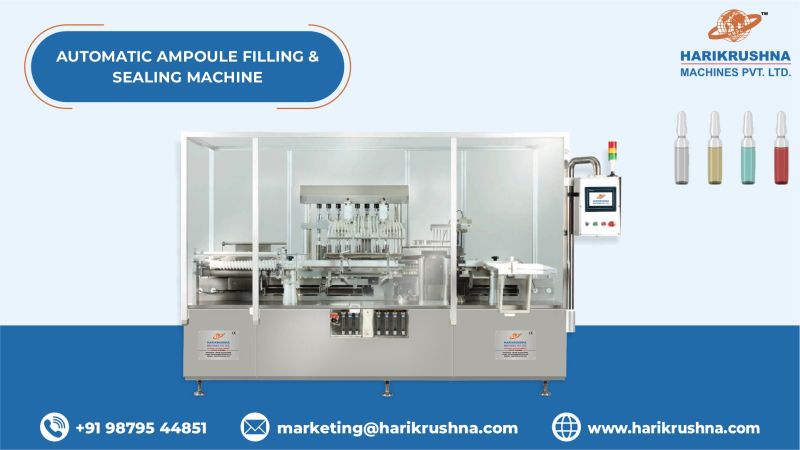

Automatic Ampoule Filling & Sealing Machine with Laminar Air Flow (LAF) System
Automatic Ampoule Filling & Sealing Machine with Laminar Air Flow (LAF) System for filling and sealing glass ampoules for pharmaceutical, veterinary, and biotech industries. Our Multi-axis servo-driven ampoule filling and sealing machine has a servo system driving feed worm, infeed starwheels, ampoule travelling rack, syringes, nozzles diving system, and ampoule cutting system. The ampoule-filling mechanism is executed by imported Rotary Syringes.
Key Features
- Minimum Quantity of Ampoule at Infeed Wire Mesh Conveyor Machine Stop with Auto Restart Facilities.
- Machine Suitable For 1 ML To 25 ML Ampoule (with Help of Change Parts).
- Fitted with change parts of 2 ML/3 ML Ampoule.
- No Ampoule No Filling System in Individual Syringe.
- Peristaltic Pump attached with Servo Motor (8 Nos. = 1 Set) suitable for 1 ML to 25 ML Fill.
- A.C. Variable Drive For Main Machine and Conveyor.
- Rotomotive/Bonfiglioli Make Gear Box.
- Nitrogen Pre and Post Purging System with Rota Meter.
- Delta Make PLC Unit with Delta Make 10.2” Color Touch Screen HMI with Printing Facilities.
- Exhaust Duct with Blower (Exhaust Duct from The Machine to The Service Floor will be in Customer Scope).
- SS-304 Construction.
- Servo Motor-based Label Applicator.
- Sensor- Sick/Baumer/Benner Make
- Gear Box – Rotomotive/Bonfiglioli
- Fitted with change parts for 2/3 ML Ampoule
- In Built A.C. Frequency Drive For Speed Control
- Output: 300 Ampoule/minute On Base Of 2/3 ML Ampoule
- Change Parts of each size of Ampoule
- Infeed Feed Worm -1 No.
- Star Wheel Bracket -3 Nos. with 1 No. Guide Set
- Travelling Rack -1 No.
- Peristaltic Pump Synchronized Attached with Servo Motor
- Optional Accessories
- LAF Unit Suitable for Amp. Filling & Sealing Machine
- Toughen Glass Cabinet with SS Structure
Machine Brief
- Laminar Air Flow Unit For Ampoule Filling Sealing Machine
- Infeed Worm – 1 Nos.
- Star Wheel Bracket -3 Nos. with 1 Nos. Guide Set
- Travelling Rack-1 Nos.
- Discharging Hopper
Optional
- Toughen Glass Cabinet with SS Pipe Structure
