Product Details
Automatic Grade
Automatic
Driven Type
Electric
Model
HMPL-ICS
Output Speed
Up to 120 Products/Minute (Depends on product Size)

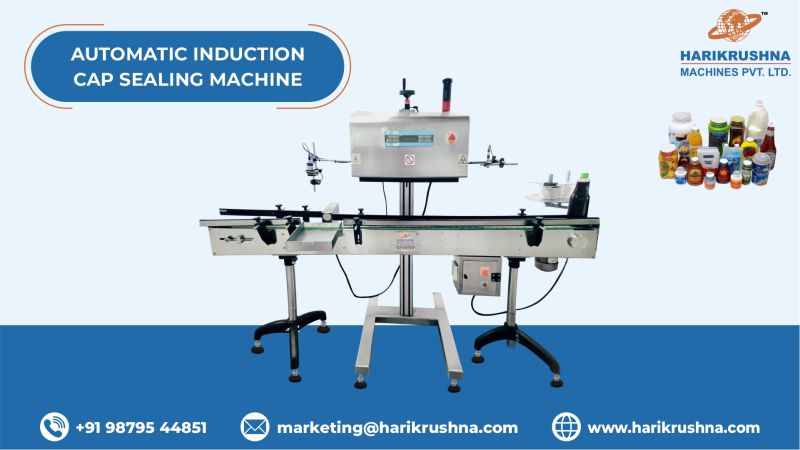

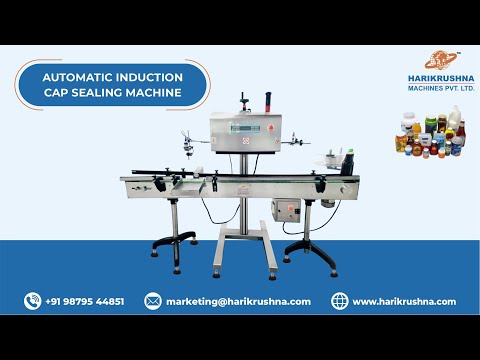

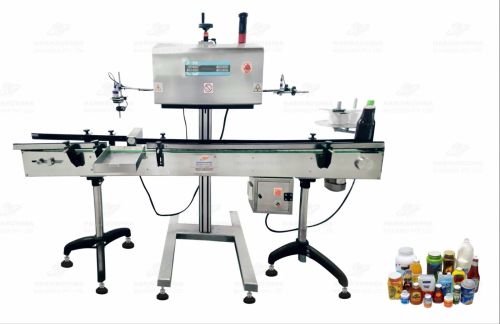

Automatic Induction Cap Sealing Machine
The Automatic Induction Cap Sealing Machine consists of a main structure with a water-cooled unit, product transmission belt, foil sealing head, height adjustment system, electrical panel & PLC.
Key Features:-
- The Induction cap sealing machine has been developed especially with a view to meet exact needs of the packaging industry. Our online model features wide output power range, high efficiency and microprocessor controls. This equipment can seal cap sizes of 20 mm-75 mm and 60 mm-120 mm dia. The features of the machine are enclosed herewith;
- Compact all-in-one design: Easily Movable: The machine is mounted on a wheel based water-cooling unit which provides mobility. Easy for line relocation.
- Single Body, “ON CONVEYOR” mounting system.
- Front panel with easy to use membrane switches.
- Coil movement Standard: 300 mm.
- Special: As required by the customer.
- Conveyor Stop System: The conveyor stops in predefined condition of Sealing Off.
- Over Load Protection & ALARMS
- Over Voltage
- Over Current
- Spike & Surge
- Over Temperature cut off
- No effect of voltage fluctuation
Key Features
- The Induction cap sealing machine has been developed especially with a view to meet exact needs of the packaging industry. Our online model features wide output power range, high efficiency and microprocessor controls. This equipment can seal cap sizes of 20 mm-75 mm and 60 mm-120 mm dia. The features of the machine are enclosed herewith;
- Compact all-in-one design: Easily Movable: The machine is mounted on a wheel based water-cooling unit which provides mobility. Easy for line relocation.
- Single Body, “ON CONVEYOR” mounting system.
- Front panel with easy to use membrane switches.
- Coil movement Standard: 300 mm.
- Special: As required by the customer.
- Conveyor Stop System: The conveyor stops in predefined condition of Sealing Off.
- Over Load Protection & ALARMS
- Over Voltage
- Over Current
- Spike & Surge
- Over Temperature cut off
- No effect of voltage fluctuation
Technical Data
| Sample Product | HDPE Bottle |
| Cap Size | 20 mm to 75 mm |
| Max. Line Speed | 60 Feet Per Minute |
| Output Speed | 80 to 120 Products/Minute (Depends on product Size) |
| M. O. C. | SS 304 |
| Power Output | 2KW |
| Mains | 230 V AC/ Single Phase/50Hz |
| Standby Power | 0.3 KW |
| Max. Line Current | 10 Amp |
| Net Weight | 150 KG Approx. |
| Water Circulation System | Consisting SS tank, Radiator with cooling fan, 1/8 HP water pump, Flow switch SS 304 |
| Adjustable Head stand | Movable height from 850 ± 50 mm + 300 mm |
| Conveyor Belt | SS Slat Chain Conveyor |
