| Business Type | Manufacturer, Exporter |
| Automation Grade | Automatic |
| Country of Origin | India |
| Filling capacity | 10gms to 250gms Aluminum / LAMI / PVC Tubes (With the help of required change parts) |
| Click to view more | |
Product Details

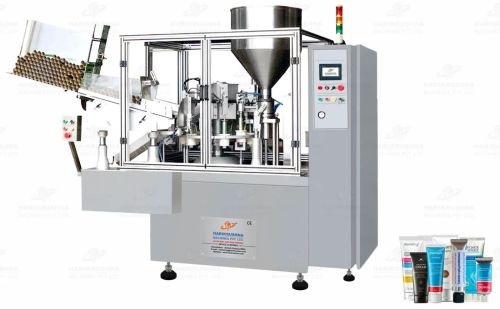

The Automatic Tube Filling, Sealing and Coding Machine consist of a main structure, tube moving with a tube holding unit, safety acrylic enclosure (OPTIONAL), jacketed hopper with a stirrer (OPTIONAL), filling nozzles, sealing head, coding unit, hot air sealing unit, electrical panel, PLC & HMI (OPTIONAL), mains on/off & motor.
We Manufacture High-Performance Tube Filling Machines for Creams and Ointments. Our complete stock of Tube Filling Equipment includes Automatic Tube Filling, Tube Filling Fully Automatic Ointment/Cream Manufacturing Plant, Toothpaste Manufacturing Plant, Ointment Manufacturing Plant, Lotion Manufacturing Plant, and Cream Manufacturing Plant. The Cosmetics & Personal Care manufacturing mixer and plant, Cosmetic Skincare Manufacturing Equipment, and Plants, pharmaceutical ointment & cosmetic industries for the production of Ointment, Cream Filling Machine, Lotion Filling Machine, Tooth Paste & other emulsions & homogenization.
Contract Manufacturing & Filling, Shampoo, Cream, Fragrance, Color Cosmetics & Lipsticks, Cosmetic Equipment & Machines, Lotion Filling Machine, Cream Filling Machine, Ointment Tube Filling and Sealing Machine, Laminated Tube Filling Machine, Cosmetic Tube Filling Machine, Plastic Tube Filler, Semi-Automatic Tube Filler, Automatic Tube Filling Machine, Rotary Tube Filling Machine, linear Tube Filling Machine, High-Speed Tube Filling Machine, Tooth Paste Tube Filling Machine, Filling Machines For Plastic Tube, Lotion Tube Filling Machine, Pharmaceutical Tube Filling Machine, Medicine Tube Filling Machine, Cosmetic Cream Tube Filling Machine, Ointment Tube Filling Machine Cosmetic Manufacturing Machines, Manufacturing Plant, Filling Line with Cosmetic Turnkey Project Services.
Key Features
- The machine is manufactured or developed accordance with GMP standards.
- Structure is made of MS cladded with SS 304.
- This machine is specially designed to fill, seal and code the Aluminum / LAMI / PVC Tubes.
- It can be used to fill viscous as well as semi viscous materials in Aluminum / LAMI / PVC Tubes.
- Machine preset with 20gms to 100gms Piston & Cylinder.
- All the contact parts are made of SS 316 (GMP Model).
- Tube holders are made of nylon for different diameter of tube.
- Relay electrical control systems operating panel with START, STOP and INCH.
- SENSOR BASE NO TUBE NO FILLS MECHANISM.
- Specially designed hot air sealing unit to seal PVC tubes.
- Motor with variable speed.
- All moving parts are guarded / enclosed.
- Coding Device with 10 letters for one side.
- Hopper temperature thermocouple with digital display.
Technical Data
| Model | HMPL–TFS |
| Tube Diameter | 12 mm Ø to 50 mm Ø (Standard) |
| Tube Length | 45 mm to 200 mm |
| Filling Capacity | 10gms to 250gms Aluminum / LAMI / PVC Tubes (With the help of required change parts) |
| Output Speed | 20 to 150 Tubes/Minute (Depending on viscosity of material, loading & fill capacity) |
| Filling Accuracy | ± 1% of Filling Volume |
| Power Supply | Three Phase / 440 V AC / 50 Hz |
| Compressed Air | 4 to 5 Bar 100 L/Minute (If have sticky material) |
| Hopper ** | 500 mm Ø 600 H |
| Change Parts | a) Tube Holder b) Nozzle c) Auto Loader |
