35 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Packaging Material | Cream,Lotion |
| Machine Type | Automatic |
| Output Speed | 40-150 BPM |
Key Features
- All contact parts are of SS 316 quality material & finished to class 4B (Mirror) finish and are crevice free
- Easily Cleanable
- Complete lid lifting arrangement to facilities cleaning at the time of product change over
- Specially designed becomixs stirrer with flexible Teflon scrapers
- All transfer are done through vacuum to avoid any hand touch & contamination
- The entry of all agitators are from top & High Speed Emulsifier from bottom or In-line Emulsifier (as per customer choice)
- All vessels are suitable for internal pressure of 1 Kg. / Sq. cm. and hence can be sterilized
- All pipes, interconnecting piping, and valves are of SS 304 / SS 316 (as per customer requirement) seamless quality, internally electro-polished, with tri-clover ended joints
- All values of temperature & time of the plant are indicated digitally on the control panel. All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement.
- Capacity: 100 KG to 5 TON

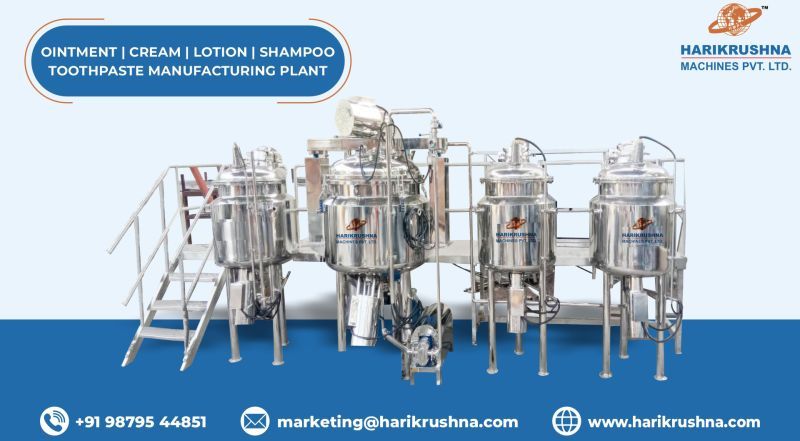

Machine Brief
- Manufacturing Vessel
- Wax Phase Vessel
- Water Heating Vessel
- Storage Vessel
- Ointment Transfer Pump (Lobe Pump)
- Ointment Transfer Pump (Metering Pump)
- Control Panel
- Piping of Complete Plant
- Working Platform
- Vacuum Pump
- Steam / Electrical Operated
Optional
- Load Cell For Accurate Weighing
- Plc Based Control Panel For Process Automation
- Utility Piping Under Working Platform
