Product Details
Automatic Grade
Automatic
Driven Type
Electric
Model
HMPL-PF

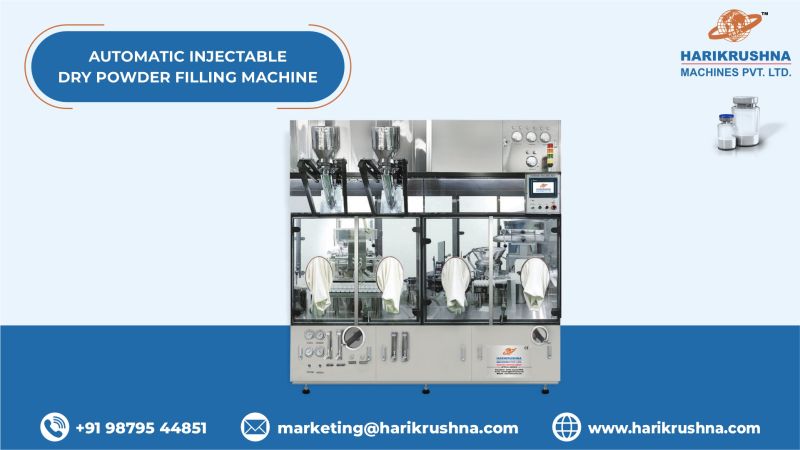

Automatic Injectable Dry Powder Filling Machine
The Automatic High-Speed Injectable Dry Powder Filling Machine is a completely mechanical driven machine with self picking roller-based rubber stoppering system. This machine has a very sturdy design and can withstand long working hours. The filling is done with the help of a vacuum and air pressure-based powder wheel with a manual fill weight setting.We have developed various aseptic powder filling and rubber stoppering machines from 1st generation monolithic mechanical machines to our latest advanced 4th generation servo-driven Centralized Piston Adjustment powder filling machine designed to fill micro dose sterile powder into a glass vial and close the same with a rubber stopper.
Key Features
- Machine is suitable for Vial Size From 5 ML To 30 ML & Rubber Stopper Sizes Of 13 & 20 MM (with The Help Of Change Parts.)
- Fully SS 304 Pipe Structure
- Vial Transportation System Through Star Wheel – Moc: Delrin with SS304
- 1nos. Of Powder Wheel (8 Port) Suitable For Filling 250 MG To 1500 MG Powder in Single Stroke
- Servo Operated System for Powder Wheel and Star Wheel Device
- Two Types of Powder Hopper with Primary and Secondary Hopper with Individual Gear Motor. – 2 Sets
- Sensors for Powder Hopper
- One Set of Pistons Having Fill Size of 1250 MG To 1500 MG.
- Change Parts Suitable For 5/10ml Vial Provided with Machine.
- All Contact Parts Are SS 316 L and Easily Removable for Autoclaving
- Dia 36” Variable Speed In Feed Turn Table.
- No Vial In In Feed Conveyer Machine Stop.
- No Vial No Fill System.
- No Rubber Stopper In Chute -machine Stop.
- Vacuum Pump (Oil Base)
- Star Wheel-based Type Rubber Stoppering Unit
- Vibrator and Bowl Suitable For 20 MM Rubber Stopper.
- A. C. Frequency Drive – Delta Make For Speed Control.
- Output: 110 To 120 VPM For 5/10 ML Vial In Single Dose (speed Depend On Filling Volume Bulk Density And Taped Density Of Powder And Room Environment).
- Output Speed Up to 400 VPM (As per Customer Requirements)
- The Speed Will Be Variable Through Ac Drive With Help Of HMI
- Accuracy: +/- 2% Depending Upon Consistency And Uniformity of Injectable Powder Under Controlled Level Of Humidity
- Delta Make PLC Unit with 10″ Touch Screen HMI suitable
