| Business Type | Manufacturer, Exporter |
| Capacity | 1000 Vials/hour |
| Material | Stainless Steel |
| Type | Automatic Linear Vial Washing Machine |
| Click to view more | |
Product Details
Linear Vial Washing Machine | Automatic Linear Vial Washing Machines

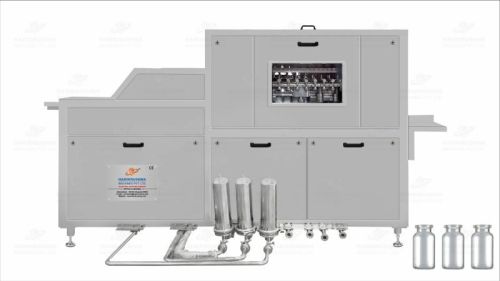

The Automatic Linear Vial Washing Machine consists of the main structure, covered with SS cabinet safety acrylic doors (OPTIONAL), in-feed turntable, washing nozzles, out-feed conveyor, pumps with the tank, filter housing & cartridge, pneumatic components, motors & gearbox, and electrical panel, AC Drive, PLC & HMI (OPTIONAL).
Vial Washing System: Wash 2 ml to 30 ml Round Glass Vials with up to 200 Vials per Minute Speed
Linear Vial Washing System wash 2 ml to 30 ml round glass vials with up to 200 vials per minute output speed. HMPL Sterile's Automatic Linear Vial Washing Equipment meets demanding production requirements. Its user-friendly interface allows for easy operation and monitoring, enhancing overall productivity.The advanced technology incorporated into this machine guarantees thorough cleaning of each vial, ensuring compliance with stringent quality standards. Its linear design optimizes space utilization while maintaining a consistent washing performance.HMPL Sterile offers a cutting-edge solution for vial washing needs, combining speed, accuracy, and reliability to streamline production processes effectively.
Vial Washer | Vial Washers Manufacturer & Exporter in India
A vial washer is a specialized machine that cleans vials and small cylindrical containers made from glass. Vial washers play a crucial role in ensuring the sterility and cleanliness of vials.
Rotary Vial Washers:
Key Features
- The Linear Vial Washing Machine is made compact & versatile as per GMP norms.
- The structure is made of MS and cladded with SS304.
- The machine’s contact parts consist of Stainless Steel 316 L.
- The construction is rigid and vibration-free, ensuring trouble-free performance.
- An acrylic cabinet covers the washing section, providing ease of cleaning.
- Operating the machine is simple.
- The machine utilizes SS 304, hard chrome plating, or brass for all exposed parts, ensuring a corrosion-free long life.
- During the washing operation, the six nozzles enter the vial mouth, ensuring thorough penetration of washing media to achieve a perfect washing principle.
- Fixed top nozzles in each washing station ensure external washing of vials at the same time as internal washing.
- During the chained indexing, the flow of washing media stops, resulting in a straight 25% saving on utilities.
- We have designed a system of solenoid valves and optional tanks, pumps, and filters for long, trouble-free life and foolproof operation.
- Four inner washes (Including one air wash, two inner wash with recycled tray) & one outer wash.
Technical Data
| Vial Size | 2 ml to 30 ml Round Glass Vials |
| Output Speed | 60 to 200 Vials/Minute (Speed depends on product size) |
| Working Height | 875 ± 50MM Adjustable |
| Power Consumption | 1.5HP Main Machine/ 2.25HP Pumping Station/ 0.25HP Loading Platform) |
| Power Supply | 3 Phase + Neutral + Earthing / 415 V AC / 50Hz |
| Air Consumption | 5 CFM |
| Air Supply | 4 to 6 Kg/Cm2 |
| Net Weight | 600 Kg Approx. |
| Dimensions (L x H x W) | 3265mm (L) x 1835 mm (W) x 850mm (H) Approx. |
| Wash Cycle | 7 Wash |
| Change Parts | In-feed Screw, In-feed Inverter, In-feed Start Wheel Out-feed Screw, Out-feed Inverter, Out-feed Star Wheel |
