Product Details
Condition
New,New
Automatic Grade
Automatic
Model
HMPL–SSVHL
Output Speed
Up to 400 Labels/Minute (Speed depends on label and products size)

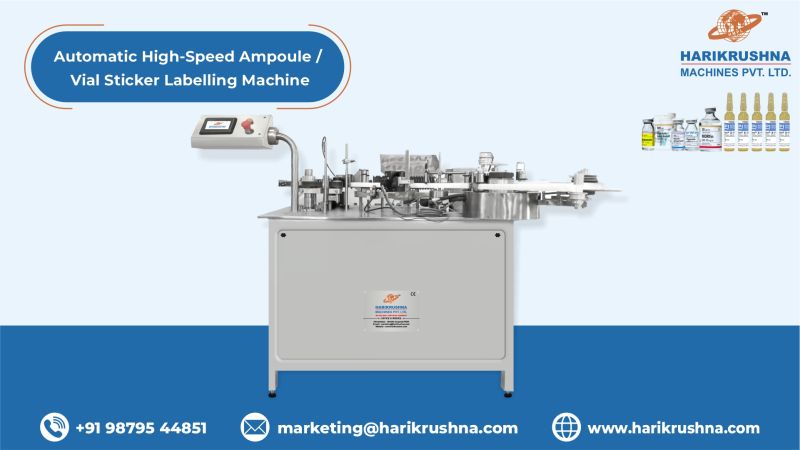

Automatic High-Speed Ampoule / Vial Sticker Labelling Machine
The Automatic High-Speed Ampoule / Vial Sticker Labelling Machine Consists of the Main Structure, Product in-feed Tray, in-feed Screw, Rotary Star Plate, Product Outfeed Tray, Label Dispensing Unit, Label Wrapping Unit, Electrical Panel, Sensors, Motors, AC Drive, PLC & HMI (Keypad)
Key Features :-
- The machine is manufactured or developed accordance with GMP standards
- Structure made of SS 304.
- All moving parts of the machine covered by safety guards of SS.
- All expose parts of MS are powder coated / electro less nickel plated.
- System equipped with imported AC frequency variable drive for variable speed with constant torque.
- Product loading in in-feed tray to convey the product through in-feed screw.
- Specially designed drive mechanism for Label Release.
- Dispensing unit to dispense labels.
- Reel mechanism (Size: 305 mm) to hang the roll with core ID of 76 mm (3″).
- Break assembly to avoid variation during releasing of roll.
- Various label position adjustment with the help of sliding pipe assembly.
- Easy change over time is 15 to 20 minutes.
- Wrap around mechanism (timing belt) to wrap the label on product.
- Emergency stop switch.
- Noise level Less than 62 DB.
- Most reliable and proven components such as Festo/SMC make pneumatic and electrical/electronic such as Bonfiglioli/Motovario/Rotomotive make AC motor, Delta make AC Drives, PLC & HMI (Keypad), MCB & relay “CE” make.
Feature of PLC System with HMI
- No Product No Labelling.
- Fiber Optic based Product sensor to sense the product (Sensor Make: LEUZE/BANNER/SICK).
- Fiber Optic based Label Gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SICK).
- The unit is made compact design & user-friendly operating HMI.
- Over Current / Temperature Protection.
- Special HMI function like Product Delay & Pre dispensing Length For makes easy machine setting.
- Label dispensing speed can set digital by using HMI.
- System Refresh: This function is used to feed the label size into the Controller. Whenever you change to a new label type, or size press REF key. Three labels are dispensed to get the exact label size.
- Motor unlock facility for changing the label roll.
- Total counter facility is available with password protected reset button.
- PPM (Product per machine) facility is available.
- HMI with keypad for operating.
- Capacity to speed control AC drive from HMI.
- Multiple program facility.
- Label Break/Roll End/Missing Label (02 Nos.) – Machine Stop. When there are two consecutive missing labels or a broken label role this error occurs. The HMI screen shows it as “Label Break/Roll End/Missing Label”.
- Two nos. continuous missing label in the label role automatic machine stop.
- The Panel unit is made in compact design & easy serviceable/Removable.
Technical Data
| Product Samples | Ampoules / Vials (with the help of change parts) |
| Sample Product Size | 2 ml to 30 ml |
| Label Size | Up to 95 mm H |
| Output Speed | Up to 400 Labels/Minute (Speed depends on label and products size) |
| Working Height | 850 +/- 50 mm Adjustable |
| Power Supply | Three Phase / 415 V AC / 50Hz |
| Air Supply | 2 to 4 Kg/Cm2 (In case of Contact Printer) |
| Net Weight | 350 kgs Approx. |
| Dimensions | 915 mm (L) x 915 mm (W) x 850 +/- 50 mm (H) |
