Product Details

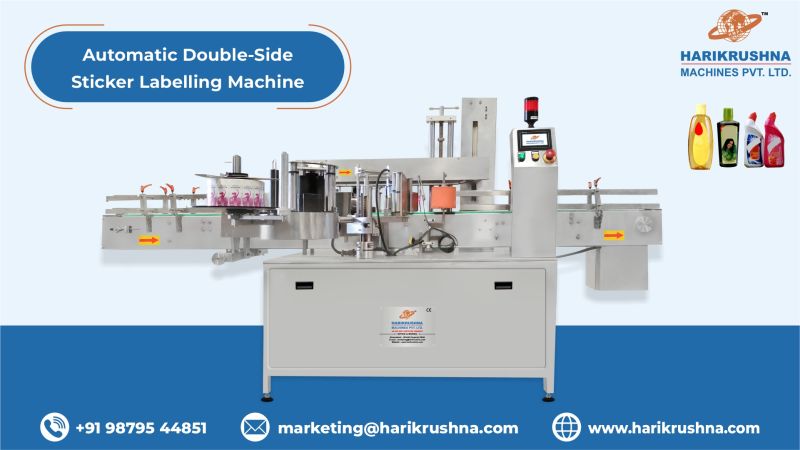

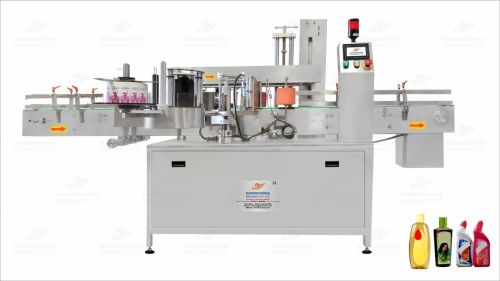

The Automatic Double-Side (Front & Back) Sticker Labelling Machine consists of the main structure, product in-feed screw, product transmission belt with guide adjustment, top product holding conveyor with height adjustment, 2 nos. of label dispensing unit, label pasting unit, motor, sensors, AC drives, motors, electrical panel, mains on/off, emergency switch, PLC & HMI.
Automatic Two-Side Self-Adhesive (Sticker) Labelling Machines for Flat and Round Bottle. The Front and Back Labelling Machine is used for Full/partial labelling on different sizes of Flat or rectangular containers. It is capable of labelling up to 120 containers per minute depending on products and label size. The automatic double-side sticker labeller model is equipped with a roller spacing device resulting in a simple operation with “No change parts required”.
Key Features
- tures
- Features of PLC System With HMI
- Technical Data
- The machine is manufactured or developed accordance with GMP standards.
- Structure made of SS 304
- All moving parts of the machine covered by safety guards of SS
- All expose parts of MS are powder coated / electro less nickel plated.
- Conveying system to convey the product with easy adjustable side guide
- Conveying system equipped with imported AC frequency variable drive for variable speed with constant torque
- Unique in-feed screw to ensure uniform distance between two products
- Top Conveyor to holding product at the time of labelling
- Machine suitable for product like Round / Rectangular / Flat / Oval /Square
- Imported AC frequency variable drive for variable speed with constant torque
- Specially designed drive mechanism for Label Release
- Dispensing Unit to dispense labels
- Various label position adjustment with the help of sliding pipe assembly
- Label affixing on the product with the help of nylon brush and sponge roller
- All moving parts of the machine covered by safety guards of SS
- Reel mechanism (Size: 305 mm) to hang the roll with core ID of 76 mm (3″)
- Label release mechanism
- Break assembly to avoid variation during releasing of roll
- Most reliable and proven components such as Festo/SMC make pneumatic and electrical/electronic such as Panasonic/Bonfiglioli/Motovario/Rotomotive make AC motor, Delta make AC Drives, Delta make PLC & HMI (keypad), MCB & relay “CE” certified.
Feature of PLC System with HMI
- No Product No Labelling.
- Fiber Optic based Product sensor to sense the product (Sensor Make: LEUZE/BANNER/SICK).
- Fiber Optic based Label Gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SICK).
- The unit is made compact design & user friendly operating HMI.
- Over Current / Temperature Protection.
- Special HMI function like Product Delay & Pre dispensing Length For makes easy machine setting.
- Label dispensing speed can set digital by using HMI.
- System Refresh: This function is used to feed the label size into the Controller. Whenever you change to a new label type, or size press REF key. Three labels are dispensed to get the exact label size.
- Motor unlock facility for changing the label roll.
- Total counter facility is available with password protected reset button.
- PPM (Product per machine) facility is available.
- HMI with keypad for operating.
- Capacity to speed control AC drive from HMI.
- Multiple program facility.
- Label Break/Roll End/Missing Label (02 Nos.) – Machine Stop. When there are two consecutive missing labels or a broken label role this error occurs. The HMI screen shows it as “Label Break/Roll End/Missing Label”.
- Two nos. continuous missing label in the label role automatic machine stop.
- The Panel unit is made in compact design & easy serviceable/Removable.
Technical Data
| Sample Product | Oval / Flat / Square / Round Products |
| Sample Product Size | 10 ml to 1000 ml |
| Output Speed | Up to 200 Products / Minute (Speed depends on label and products size) |
| Label Size | Up to 95 mm H |
| Working Height | 850 mm ± 50 mm Adjustable |
| Power Supply | Three Phase / 415 V AC / 50Hz |
| Air Supply | N.A. |
| Net Weight | 450 Kg Approx. |
| Dimensions | 2745 mm (L) x 1400 mm (W) x 1800 mm (H) Approx. |
