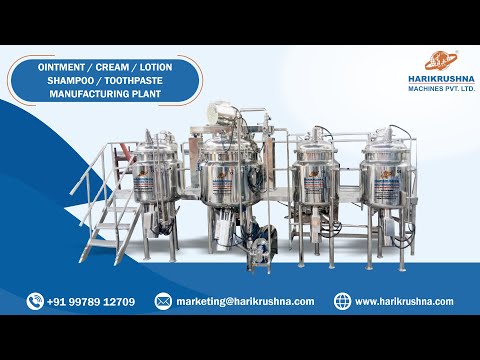

Toothpaste Manufacturing Plant

Key Features

• All contact parts are of SS 316 quality material & finished to class 4B (Mirror) finish and are crevice free
• Easily Cleanable
• Complete lid lifting arrangement to facilities cleaning at the time of product change over
• Specially designed becomixs stirrer with flexible Teflon scrapers
• All transfer are done through vacuum to avoid any hand touch & contamination
• The entry of all agitators are from top & High Speed Emulsifier from bottom or In-line Emulsifier (as per customer choice)
• All vessels are suitable for internal pressure of 1 Kg. / Sq. cm. and hence can be sterilized
• All pipes, interconnecting piping, and valves are of SS 304 / SS 316 (as per customer requirement) seamless quality, internally electro-polished, with tri-clover ended joints
• All values of temperature & time of the plant are indicated digitally on the control panel. All the inlet & outlet connections are provided with tri clover joints, which are very easy for cleaning & replacement.
• Capacity: 100 KG to 5 TON

Machine Brief

• Manufacturing Vessel
• Wax Phase Vessel
• Water Heating Vessel
• Storage Vessel
• Ointment Transfer Pump (Lobe Pump)
• Ointment Transfer Pump (Metering Pump)
• Control Panel
• Piping of Complete Plant
• Working Platform
• Vacuum Pump
• Steam / Electrical Operated

Optional

• Load Cell For Accurate Weighing
• Plc Based Control Panel For Process Automation
• Utility Piping Under Working Platform
