Product Details

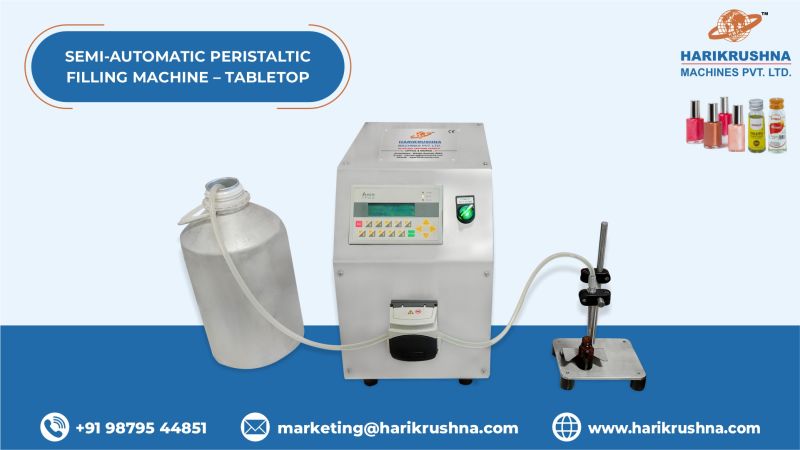

The Semi-Automatic Peristaltic Filling Machine consists of the main structure of SS, filling pump, bottle & nozzle holding device, filling nozzle, foot switch, feather touch HMI control, motor & electrical panel. The Peristaltic Pump is a two-channel pump for use in the laboratory and extensively in industrial applications where an accurate flow rate is essential. Pumping action is done by a roller cage driven by a stepper motor. The motor and internal are almost independent of temperature. This pump has a load and line compensation circuit. The rollers are made up of carbon-filled nylon for trouble-free operation. The electronic circuit provides a constant flow rate even if there is line voltage or load variation.
MODEL
| # | Model | Head | Output Speed |
| 1 | HMPL-SPF-TT-1 | 1 | 08 to 10 PPM (Speed Depends Upon pump, liquid volume and viscosity) |
| 2 | HMPL-STF-TT-2 | 2 | 16 to 20 PPM (Speed Depends Upon pump, liquid volume and viscosity) |
Key Features
- The Peristaltic Filling Machine is manufactured or developed accordance with GMP standards.
- The whole structure is made of SS 304 matt finish.
- SS elegantly matt finish.
- The contact parts are made of SS 316.
- Rigid vibration-free construction for trouble-free performance.
- Use of Pharma grade/food grade silicon tube for the flow of liquid.
- ON/OFF switch with a built-in indication for AC input.
- PLC-based controlling.
- Microcontroller-based control circuits.
- Precise PWM-based DC Stepper Motor Drive.
- HMI which shows volume, RPM, calibration, fill timing & dispensing.
- Soft touch keypad for ON/OFF, increase & decrease
- Time, volume, and speed are set up through HMI.
- Auto Stop after the completion of Set Volume.
- Provision for external (Auto) ON control by means of a Foot switch or from the HMI
Operations
- Once the operator switch on the machine first process is to suck material from the storage bin to the nozzle end by using of start function in a clockwise direction. This facility is also useful for cleaning the filling line before the process of filling and after the process of filling in a clockwise direction and counterclockwise.
- The operator places the product on the product/nozzle holding device manually. This product/nozzle-holding device needs to be adjusted manually for different sizes.
- The filling starts after pressing the start button & the product is filled within the filling time.
- The machine can also be operated by means of a foot switch, which starts the filling without any delay time. The products are filled on the basis of parameters such as fill time & rpm.
- Once the product is filled as per the desired volume, the machine stops automatically. After completion of the filling process, the operator can remove the product manually.
Technical Data
| Sample Products | Vial, Bottle, Tube |
| Filling Volume | 2 ml to 200 ml |
| Filling Material | Free Flow Liquid |
| No. of Head | Single / Double |
| Output Speed | (HMPL-SPF-TT-1) – 08 to 10 PPM |
| Output Speed | (HMPL-SPF-TT-2) – 16 to 20 PPM |
| Speed | 1 to 150 RPM |
| Flow Rate | 0.1 to 570 ml / Minute |
| Tubing | 7.9 mm ID with 1.6 mm Wall Thickness Silicon |
| Set Volume | 0 to 9999 ml |
| Interval Time | 0 to 99.9 Seconds |
| Rotor | SS 304 |
| Rollers | Carbon Filled Nylon |
| Enclosure | Stainless Steel |
| Motor | Stepper Motor |
| Pressure | Up to 2.5 Kg / Cm² |
| Accuracy | ± 1 % |
| Power Supply | Single Phase / 230 V AC / 50 Hz |
| Net Weight | 5 Kg Approx. |
| Dimension (L x W x H) | 580 x 495 x 385 mm Approx. |
