| Business Type | Manufacturer, Exporter |
| Condition | New |
| Brand | Harikrushna Machines |
| Operating Mode | Automatic |
| Click to view more | |
Product Details
Country of Origin
India
Material
Stainless Steel
Driven Type
Electric
Model
HMPL-MCP
Output Speed
Up to 150 Bottles/Minute (Depending on cap and product size)

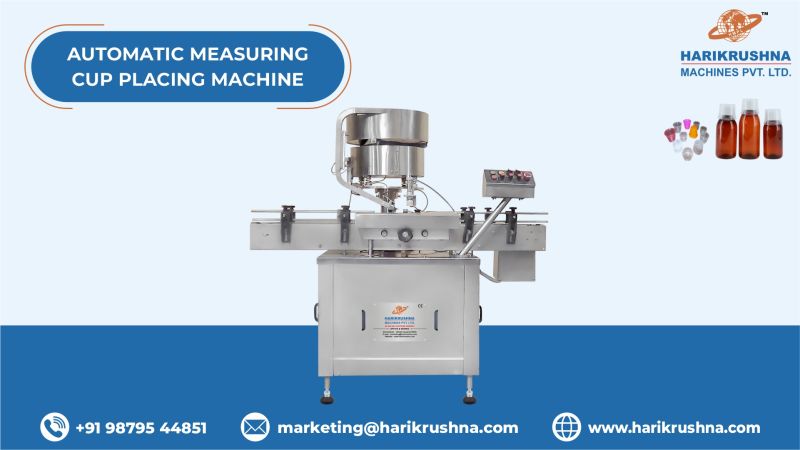

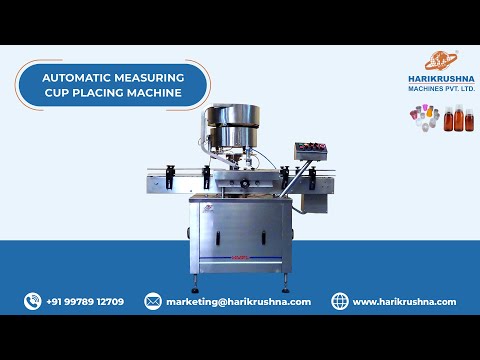

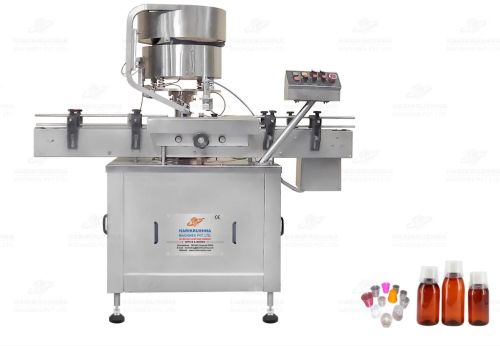

Automatic Measuring Cup Placing Machine
The Automatic Measuring Cup Placing Machine consists of the main structure, product transmission belt with an adjustable guide, Bowl for cups, cup delivery chute, pressing head, product’s height adjustment screw, electrical panel, motor & AC drive.
Key Features
- The Measuring Cup Placing machine is manufactured or developed accordance with GMP standards.
- Rigid, vibration-free construction for trouble-free operation and performance.
- A pair of bottle-holding belts holds and centers the bottles in a perfect position for cup pickup and pressing operation.
- Change parts not required for changeover of bottles.
- Belt can move to accommodate bottles ranging from 40 mm to 65 mm.
- Height adjustment for Cup Pick up for different heights of bottles or precise pick up is absolutely made simple through a jack.
- Cup feeding is controlled through a Varia.
- Totally synchronized pressing Rollers for perfect tight fit cup pressing and easily adjustable devices for different height of bottles
- The change parts will be required only for changeover of different shapes of cup & sizes, whereas for bottles diameter & height only simple adjustments are required, which makes this unit versatile.
Key Features
- The Measuring Cup Placing machine is manufactured or developed accordance with GMP standards.
- Rigid, vibration-free construction for trouble-free operation and performance.
- A pair of bottle-holding belts holds and centers the bottles in a perfect position for cup pickup and pressing operation.
- Change parts not required for changeover of bottles.
- Belt can move to accommodate bottles ranging from 40 mm to 65 mm.
- Height adjustment for Cup Pick up for different heights of bottles or precise pick up is absolutely made simple through a jack.
- Cup feeding is controlled through a Varia.
- Totally synchronized pressing Rollers for perfect tight fit cup pressing and easily adjustable devices for different height of bottles
- The change parts will be required only for changeover of different shapes of cup & sizes, whereas for bottles diameter & height only simple adjustments are required, which makes this unit versatile
Technical Data
| Sample Products | Round Glass/PET Bottles |
| Sample Product Size | 30 ml to 500 ml |
| Cup Size | 22 mm, 25 mm and 28 mm |
| Cup Feeding System | Bowl with chute for suitable Cup |
| Output Speed | Up to 150 Bottles/Minute (Depending on cap and products size) |
| Direction of Movement | Left to Right |
| No. of Pressing Head | 1 Nos. |
| Power Supply | Three Phase / 415 V AC / 50 Hz |
| Height of Conveyor | 850 ± 50 mm Adjustable |
| Net Weight Approx. | 350 kg |
| Dimension Approx. | 1830 mm (L) x 850 mm (W) x 1900 mm (H) |
| Change Parts Required. | A) Cup: Vibratory Bowl & Chute |
