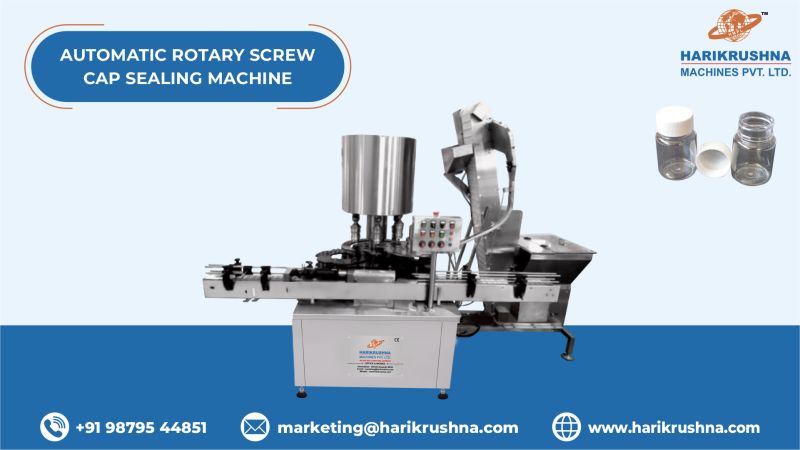

Automatic Rotary Screw Cap Sealing Machine

• The machine is manufactured or developed per GMP standards.
• The frame structure & base plate of MS painted cladding and doors of SS 304.
• Rigid vibration-free construction for trouble-free performance.
• SS elegantly matt-finished body.
• Conveying system to convey the product with an easily adjustable side guide.
• Self-lubricating UHMW-PE guide profile for SS slat chain provides low friction wear surface, smooth and noiseless conveying.
• MS powder coated or electroless nickel plating of all exposed parts to ensure long life and resistance against corrosion.
• There is a specially designed vibratory bowl and chute with no cap sensors for the continuous flow of the cap.
• The chute will have rigid mounting & cap pickup arrangement from SS material.
• Adjustable height of the conveyor belt to align with other machines of the line.
• Single motor synchronizes conveyor, star wheel, & platform turret.
• Change parts are required for different products.
• No bottle no cap arrangement.
• No cap on the chute vibrator & Machine stops.
• Clutch Overload – Machine Stop.
• Universal coupling for quick and easy setting of in-feed screw.
• Low noise level, low power consumption.
• Manually adjustable (increase & decrease) mechanical torque (magnetic clutch) heads system.
• Fix the set pin for the star wheel.
• Mechanical stopper to stop incoming bottles.
• Very little mechanical adjustment is required due to the special design.
• User-friendly and very little maintenance required.
• Star wheel & Guide MOC: UHMW nylon.
• Most reliable and proven components such as electrical/electronic such as AC motor, AC Drive, Sensor, MCBs & relay “CE” certified.

The filled bottle moving on the conveyor belt is fed into an in-feed star wheel through the in-feed screw, star wheel brings the bottle below the sealing head in the subsequent indexing part, meanwhile, the bottle picks up a cap from the delivery chute of cap filling bowl, where the body and the neck of the bottle are positioned below the rotating head, where the sealing head is performing the perfect operation of leak proof results of sealing.
