Product Details
Automatic Grade
Semi Automatic
Driven Type
Electric
Pressure
High Pressure
Specialities
Rust Proof, High Performance, Easy To Operate
Number Of Flower
Piston Filling Machine

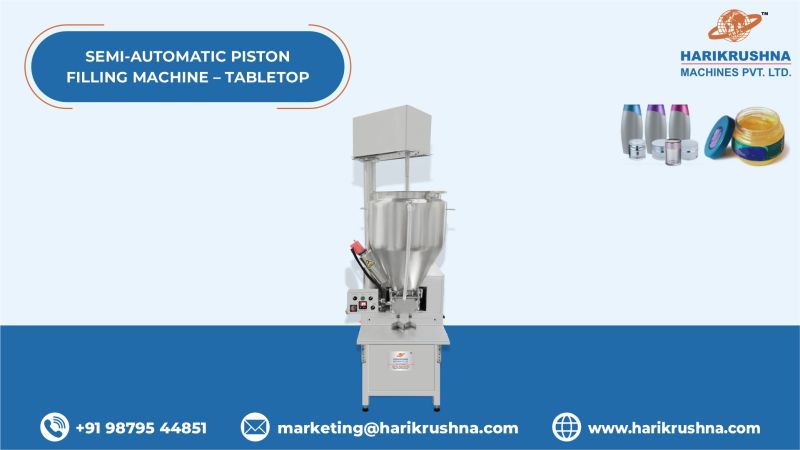

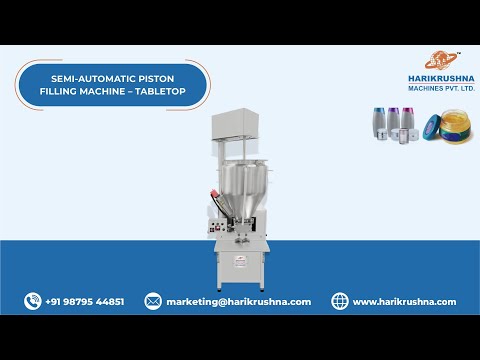

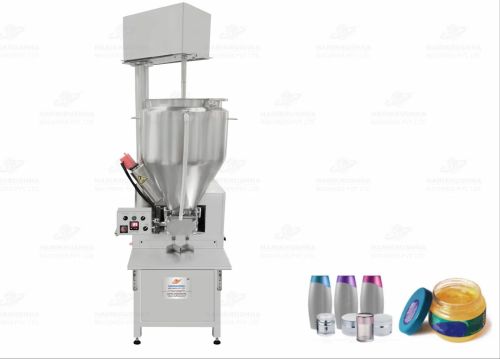

Semi-Automatic Piston Filling Machine - Tabletop
The Semi-Automatic Two Head Filling Machine consists of a main structure, product holder, hopper for filling material, piston, filling nozzle, foot-operated switch, electrical panel, motor & mains ON/OFF.
Key Features
- The Piston Filling Machine is manufactured or developed accordance with GMP standards.
- The structure is made of SS 304 matt finish.
- The contact parts are made of SS 316.
- Rigid vibration-free construction for trouble-free performance.
- The machine is run with air where electric supply is not required.
- The unit is controlled by compressed air.
- No change parts required for different filling volumes / products.
- Specially designed pneumatic cylinder operated nozzle with plunger to avoid dripping.
- The machine can be used for various sizes of products.
- Emergency on / off switch to prevent accidents.
- User-friendly and high scalability.
- Easy screw adjustment & easy to clean.
- All pneumatic connections FESTO/SMC/Janatics make.
- Dual – Auto & Manual mode operation.
- 20 Kg single wall made of SS 316 hopper.
MODEL
| # | Model | Head | Output Speed |
| 1 | HMPL-SPF-1 | 1 | 8 to 10 BPM |
| 2 | HMPL-SPF-2 | 2 | 10 to 20 BPM |
Key Features
- The machine is manufactured or developed per GMP standards.
- The SS square pipe frame structure and doors of SS 304 matt finish.
- The contact parts are made of SS 316.
- Rigid vibration-free construction for trouble-free performance.
- The unit is controlled by compressed air.
- Change parts required for different filling volumes.
- Machine preset with 2gms to 10gms Piston.
- Specially designed pneumatic cylinder-operated nozzle with a plunger to avoid dripping.
- 35 to 40 liters single wall made of SS 316 hopper.
- Jacketed Hopper with Stirrer (Optional).
- The machine can be used for various sizes of products.
- User-friendly and high scalability.
- All pneumatic connections of FESTO/SMC/Janatics make.
- Dual – Auto & Manual mode operation
- The machine is run with air where electric supply is not required.
- Emergency on / off switch to prevent accidents.
- Easy screw adjustment & easy to clean.
- 20 Kg single wall made of SS 316 hopper.
Operations
- The operator places the product manually under the Pinhead filling nozzle.
- The desired volume is set by adjusting the piston stroke. The piston stroke can be achieved by adjusting the knob & the flow rate can be controlled using an airflow control valve depending on the viscosity of the material.
- The switch (foot or Auto/Manual mode) is then operated to start the machine.
- The piston actuates & the material is sucked from the hopper and delivered in the product through a nozzle.
- Once the product is filled as per the desired volume, the operator can remove the products manually.
Technical Data
| Bottle Shape & MOC | Round Glass/PET/HDPE Bottles |
| Filling Material | Viscous Products like Balm, Cream, Lotion, Butter, Mayonnaise |
| Filling Volume | 5 Gram to 1000 Gram) |
| Filling Head | 2 (Two) |
| Filling Accuracy | ± 1 to 1.5% of Filling Weight |
| Output Speed (BPM) | Up to 20 Products/Minute (Depending on viscosity of material & manual loading) |
| Air Pressure | 6 Kg/Cm² @ 8 CFM |
| Electrical Supply | Single Phase / 230 V AC / 50 Hz Three Phase +N +E / 415 V AC / 50 Hz (If Jacketed Hopper) |
| Net Weight | 125 Kg |
| Dimensions (L x W x H) mm | 1080 x 320 x 410 mm |
