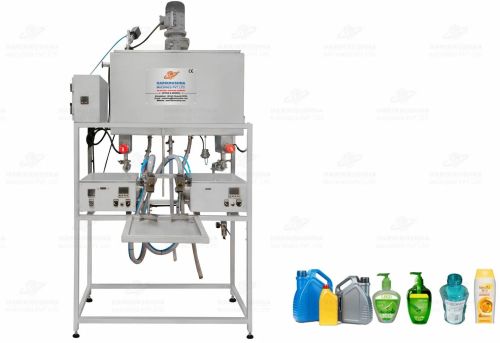

Semi Automatic Timer Filling Machine

• The machine is manufactured or developed per GMP standards.
• The SS square pipe frame structure.
• Rigid vibration-free construction for trouble-free performance.
• The contact parts are made of SS 316 such as pump/nozzle/tank & valve.
• The whole structure is made of SS 304 matt finish.
• Use of food-grade PVC breaded tube for the flow of liquid.
• Each filling head can work independently.
• Nozzle holding device.
• The storage tank with stirrer, level controller, auto inlet valve, and overflow connection.
• The machine is supplied with an easy-to-clean inbuilt storage tank.
• The drain valve below the filling tank for flushing purpose.
• Drain tray around the machine platform.
• The filling pump is useful to suck the filling material from the storage tank to the nozzle end very quickly. Moreover, this facility is useful for cleaning the filling line as well as the filling pump. The same function is for individual pumps.
• Easy to adjust for different filling volumes.
• The machine has electronic components such as an AC Drive, speed pot switches, and timer in place of mechanical parts such as a syringe, Teflon seal rod etc.
• Digitally controlled settings.
• Three-phase power requirement.
• Filling accuracy of ± 1% with water.
• No change parts are required for different filling volumes/bottles.
• The flow of liquid can be controlled by VFD.
• User-friendly and high scalability.
• Machine has electronic components such as AC Drive, speed port switch, timer in place of mechanical parts such as syringe, Teflon seal rod etc.
• Digitally controlled settings.
• Three-phase power requirements.
• Very high fill accuracy of ± 1 % with water.
• No Bottle, No Filling.
• Unique Bottle & Nozzle holding device.

• Prime with variable speed facility.
• Individual Prime facility for each Pump.
• The pump starts with settable time in auto mode.
• Settable time facility to dispense different volumes.
• Settable speed facility to dispense different viscosity products (an important feature for foamy products).
• Adjustable filling nozzle with horizontal and vertical movement for different diameters and different Heights products with adjustable product guide.
• Anti-shutoff valve to avoid dripping.

Once the operator switch on the machine first process is to suck material from the storage tank to the nozzle end. This facility is also useful for cleaning the filling line before the process of filling and after the process of filling. Place the bottle on the bottle/nozzle holding device manually. For that operator needs to adjust the height of the nozzle and diameter of the bottle manually for different requirements of filling. The machine is operated using a Footswitch, which starts the filling without any delay time. The bottles are filled based on parameters such as time, speed and delay time. Once the bottle is filled as per the desired volume the machine stops automatically. After completion of the filling process, the operator can remove the bottles manually.
