Product Details
Condition
New
Driven Type
Electric
Container Type
Bottle

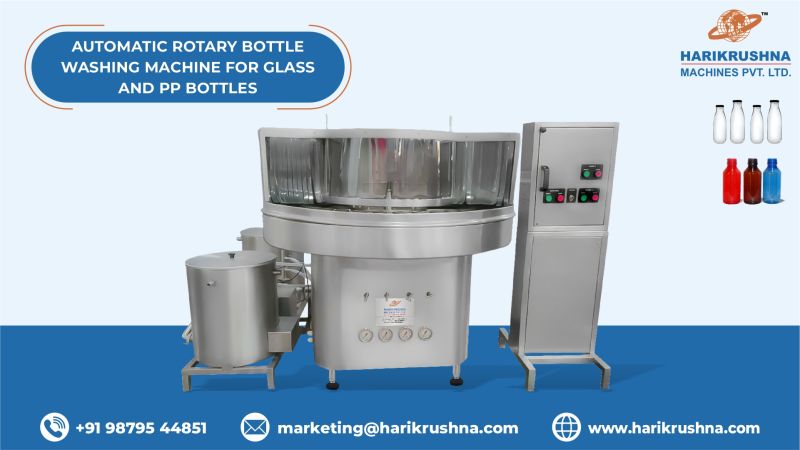

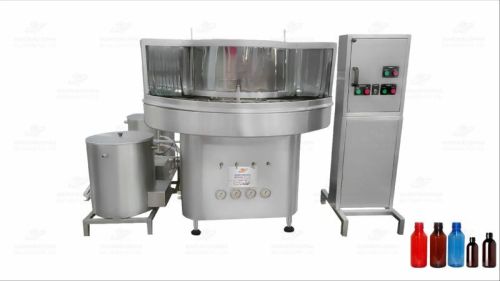

Automatic Rotary Bottle Washing Machine - Glass and PP Bottles
The Automatic Rotary Bottle Washing Machine for Glass and PP Bottles consists of the main structure, rotary platform, bottle holder/cups, flow regulators, pressure meter, solenoid valve, Geneva mechanism, 2 nos. of SS tanks with pump, nozzle, electrical panel & AC motor.
Key features
- The Rotary Bottle Washing Machine is made compact & versatile as per GMP norms.
- The structure is made of MS and cladded with SS304.
- Rigid vibration-free construction for trouble-free performance.
- The contact parts such as Rotary washing nozzle, Rotary washing pump impeller, tanks, cup/bottle holder plate are made of Stainless Steel 304.
- Easy to clean the base of the machine by removing the top cover.
- The tanks capacity is 75 liters each.
- Specially designed SS 304 Impeller-based AC motor for pumps.
- Pumps and tanks are mounted on a portable stand for easy maintenance and cleaning purpose.
- Higher capacity of centrifugal pumps to wash bigger bottles (500ml & 1000 ml).
- Stationary nozzles to eliminate contamination of water cycles.
- Specially designed Geneva Mechanism.
- Four inner wash (Included one air wash, two inner wash with recycled tray) & one outer wash.
- Easy loading/unloading & operation.
- Individual solenoid valve use for each wash – which eliminates carbon plate and other accessories. This is to avoid leakages and minimize the maintenance ratio.
- Individual flow regulating valves to control the flow of water.
- Bottle guide system especially for lightweight bottle.
- Separate panel control to avoid any short circuit due to spraying of water.
- SS glycerin-filled pressure meter
MODEL
| # | Model | Output Speed |
| 1 | HMPL-RBW-64 | 40 to 60 BPM |
| 2 | HMPL-RBW-96 | 80 to 100 BPM |
Key Features
- A continuous water spray from the top shall be also provided to wash the bottles from outside.
- The machine is manufactured or developed per GMP standards.
- The structure is made of MS cladding with SS 304.
- Rigid vibration-free construction for trouble-free performance.
- The contact parts such as the washing nozzle, washing pump impeller, tanks, and cups/bottle holder plate are made of SS 304.
- Easy to clean the base of the machine by removing the top cover.
- The tank’s capacity is 75 liters each.
- Specially designed SS 304 Impeller-based AC motor for pumps.
- Pumps and tanks are mounted on portable stands for easy maintenance and cleaning purposes.
- Higher capacity of centrifugal pumps to wash bigger bottles (500 ml & 1000 ml).
- Stationary nozzles to eliminate contamination of water cycles.
- Specially designed Geneva Mechanism.
- Four inner wash (Included one air wash, two inner wash with recycled tray) & one outer wash.
- Easy loading/unloading & operation.
- An individual solenoid valve is used for each wash – which eliminates carbon plate and other accessories. This is to avoid leakages and minimize the maintenance ratio.
- Individual flow regulating valves to control the flow of water.
- Bottle guide system especially for lightweight bottles.
- Separate panel control to avoid any short circuit due to spraying of water.
- SS glycerin fill pressure meter.
Operations
- The bottles are loaded manually on the rotating indexing platform.
- The bottles are placed in an inverted position in the specially designed bottleneck holders.
- The process of cleaning sequence is as under
- Outer wash (continuous)
- First Internal wash (In stop condition)
- Second Internal recycle wash (In stop condition)
- Third internal wash (In stop condition)
- Fourth internal recycle wash (In stop condition)
- The outer wash is a continuous process & all other washes are done in the stop condition of the rotary platform.
- The flow of the water is controlled by individual flow regulators mounted on the body.
- The first & third internal wash go in the drain & the second & fourth internal wash are recycled for any intermediate used for washing.
Technical Data
| Bottle Size(Ø) | 15 mm Ø to 75 mm Ø Height: Up to 280 mm Neck Ø: 20 mm to 38 mm |
| Working Height | 875 ± 50 mm Adjustable |
| Power Consumption | 6.5 KW (Main Motor: 0.5HP, Pump: 1HPX2 & Heater: 3KW) |
| Power Supply | 3 Phase / 440V AC/ 50Hz |
| Air Consumption | 5 CFM |
| Air Supply | 4 to 6 kg/cm2 |
| Net Weight Approx. | 650 Kg |
| Dimensions Approx. | 2200 mm (L) x 1600 mm (W) x 1350 mm (H) |
| Direction | Clockwise |
| Number of Cup Holder | 48 / 96 |
| Wash Cycle | 4 Inner + 1 Outer |
| Tank Capacity | 75 Liters (2 nos.) |
| Change Parts | Cup/Holder: If bottle neck diameter is change |
