| Business Type | Manufacturer, Exporter |
| Material | Stainless Steel |
| Brand | Harikrushna Machines |
| Model | HMPL-SAVC |
| Click to view more | |
Product Details
Output Speed
10 – 25 BPM
Country of Origin
India
Operating Mode
Semi Automatic
Speciality
Rust Proof, High Performance, Easy To Operate
Corrosion Resistance
Yes

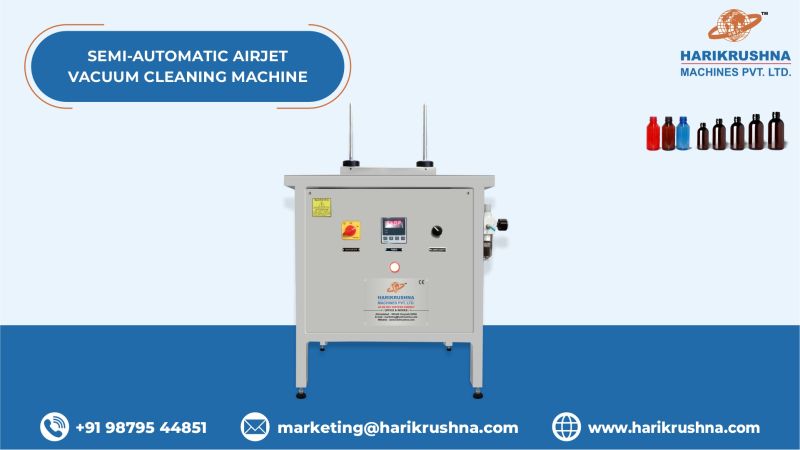

Semi-Automatic Air Jet Vacuum Cleaning Machine
The Semi-Automatic Air Jet Vacuum Cleaning System consists of main structure, Ionizer, Air Nozzle, foot operated switch and Vacuum Suction Blower by HMPL.
Key Features
- The machine is manufactured or developed accordance with GMP standards.
- The structure is made of SS 304.
- Rigid vibration free construction for trouble-free performance.
- Contact parts are made of SS 316.
- Two nos. of nozzle for cleaning of bottles.
- Bottles loaded manually on the bottle holder.
- Pressure regulator with pressure switch optionally provided.
- Adjustable height of the cleaning unit based on the height of the bottles/containers.
- User-friendly and very less maintenance required.
- Machine is given with very high velocity of air, effective cleaning of containers.
- Machine with foot-operated switch.
- Machine is given with inbuilt vacuum blower to suck loosened particles from the inner surface of the container.
- Most reliable and proven components such as Festo/SMC/Janatics make pneumatic and electrical/electronic such as Bonfiglioli/Motovario/Rotomotive make AC motor, MCB & relay “CE” make.
Key Features
- The machine is manufactured or developed accordance with GMP standards.
- The SS square pipe frame structure with doors of SS 304 sheet.
- Rigid vibration free construction for trouble free performance.
- Contact parts are made of SS 316.
- Two nos. of nozzle for cleaning of bottles.
- Bottles loaded manually on the bottle holder.
- Pressure regulator with pressure switch optionally provided.
- Adjustable height of the cleaning unit based on the height of the bottles/containers.
- User-friendly and very less maintenance required.
- Machine is given with very high velocity of air, effective cleaning of containers.
- Machine with foot operated switch.
- Machine is given with inbuilt vacuum blower to suck loosened particles from inner surface of the container.
- Most reliable and proven components such as pneumatic and electrical/electronic such as motor, vacuum blower, MCB & relay “CE” certified.
Operations
The bottles are loaded manually in invert position on bottle holder for the cleaning purpose. As soon as the bottles are placed over the ionized air nozzles, this ionized air spray blow to clean and neutralize static charge. This affected with the particles present in the bottles. These particles are sucked away by applying a simultaneous vacuum by suction blower.
Technical Data
| Sample Product MOC & Type | Round Products only – Glass/PET Bottles/Jars (with the help of change parts) |
| Sample Product Size | 10 ml to 2000 ml |
| Output Speed | Up to 25 Products/Minute (Speed depends on operator & manual loading unloading) |
| Cleaning System | Ionized Air Clean |
| Working Height | 875 ± 50 mm Adjustable. |
| Power Supply | Single Phase / 230 V AC / 50 Hz |
| Air Consumption | 5 CFM 4 to 6 Kg/Cm² (Customer’s Scope) |
| Type of Cleaning | Filter: Air Filter: 5 micron with auto drain Mist Separator: 0.3 micron with auto drain Ionized Air: High flow rate ionized air nozzle |
| Ionized Air: | High flow rate ionized air nozzle |
| Net Weight Approx.: | 150 Kg |
| Dimensions Approx. | 580 mm L x 580 mm W x 850 ± 50 mm (H) |
| Change Parts | Bottle Holder |
