| Business Type | Manufacturer, Exporter |
| Country of Origin | India |
| Automatic Grade | Automatic |
| Driven Type | Electric |
| Click to view more | |
Product Details
Application
Pharmaceutical, Veterinary, Biotech Industries
Function Type
Washing,Fully Automatic

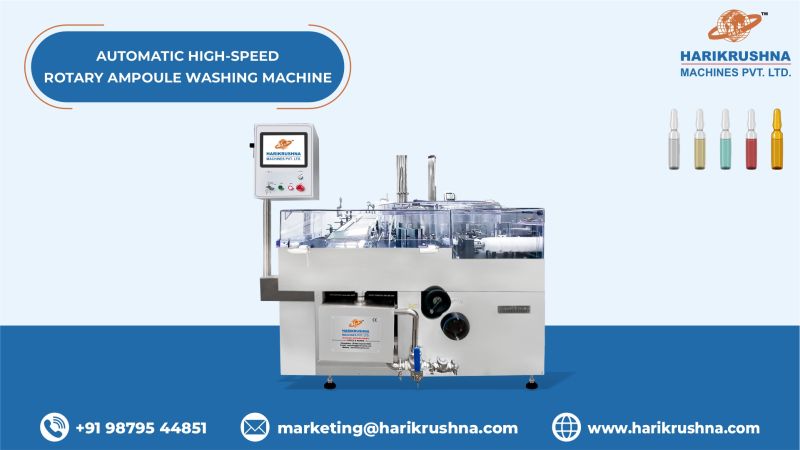

Automatic High-Speed Rotary Ampoule Washing Machine
The Automatic High-Speed Rotary Ampoule Washing Machine is specially designed to wash Ampoule with Minimum Contact Machine Parts by HMPL Sterile. The Machine is suitable for Wash 1 ml to 20 ml Ampoules with the help of Change Parts. Automatic Rotary Ampoule Washing System is widely used in the Pharmaceutical, Veterinary & Biotech Industries. The system With a Specially Designed Gripper System Holds the Ampoule from the Neck and Invert till the Washing Operation is Completed Again After Washing Release the Ampoule on the out-feed Feed Screw System in Vertical Position Ensures Positive Wash Ampoules.
Models
| # | Model | Output Speed |
| 1 | HMPL-RAW-150 | Up to 150 Ampoules/ Minute |
| 2 | HMPL-RAW-300 | Up to 300 Ampoules/ Minute |
| 3 | HMPL-RAW-400 | Up to 400 Ampoules/ Minute |
Key Features
- Basic Machine Will Be Provided With One Set Of Change Parts
- Inbuilt In Feed Turn Table Of 36″Dia
- Individual Solenoid Valve For Wash Media Application.
- S.S. Centrifugal Pumps Of Grundfos Make
- SS-316L Tanks
- DM Water & Re-Circulation Water, WFI Water & Compressed Air Can Be Directly From Loop Connection.
- Glycerin Filled Pressure Gauges – Micro Make
- Ss316L Filter Housing Of Code -7 With Its Nylon Cartridges. (Own Make Housing & Grace Make Cartridges).
- Gear Box & Motors – Bonfiglioli/Rotomotive Make (Machine & Conveyor)
- C. Frequency Drive For Speed Control. (Delta Make)
- Emergency Switch Is Provided On Both End (In Feed & Out Feed)
Machine Brief
- Machine is suitable for 1 ml to 20 ml Ampoule (with help of change parts)
- In Feed Worm, In Feed And Out Feed Star Wheel And Back Guide Set
- Air Purging System For Removal Of Water From Needles Piping -(4 Nos. Solenoid Valve For With Plc Module For Auto Flushing(purging) After Production)
- Vapour Exhaust Port
Technical Data
| Sample Products | Glass Ampoules |
| Sample Product Size | 1 ml to 20 ml |
| Output Speed | Up to 400 Products/Minute |
